| CPU | S5P6818 ARM Cortex-A53 |
|---|---|
| Frequency | 1.6GHz*8 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 8GB/16GB eMMC optional |
S5P6818 Single Board Computer is upgrade version from S5P4418 single board computer. It is compatible with S5P4418 single board computer in hardware totally, no matter peripheral, size. In performance, it is updated from A9 quad core to A53 octa core.
S5P6818 Single Board Computer size is only one third of S5P6818 development board, but its functions go further. It includes all peripheral of S5P6818 development board, and more VGA, USB WIFI/BT onboard etc.
In software, S5P6818 Single Board Computer and S5P6818 development board is compatible each other well, no more modification.
S5P6818 Single Board Computer can be used widely without peripheral extended, such as industrial control, electricity, Communications, medical, media, security, automotive, financial, consumer electronics, advertising machine, set-top boxes, hand-held devices, game consoles, display control and so on. The user can embed it into products directly, and no secondary development. More embedded engineers can take it into studying and DIY in university.
S5P6818 Single Board Computer, it supports 1GB RAM, 2GB DDR3 and Android/Linux/Ubuntu operating systems.
The size of S5P6818 Single Board Computer is 100.66mm * 68.8mm
Hardware |

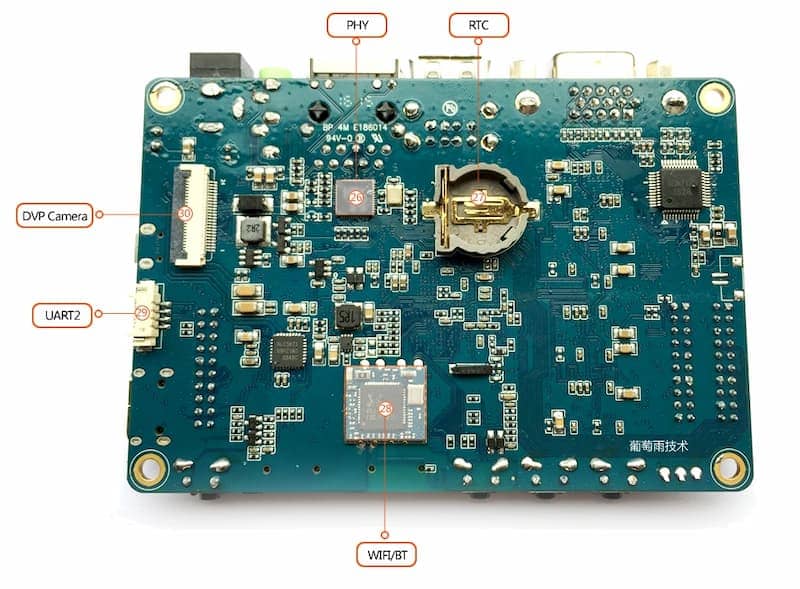

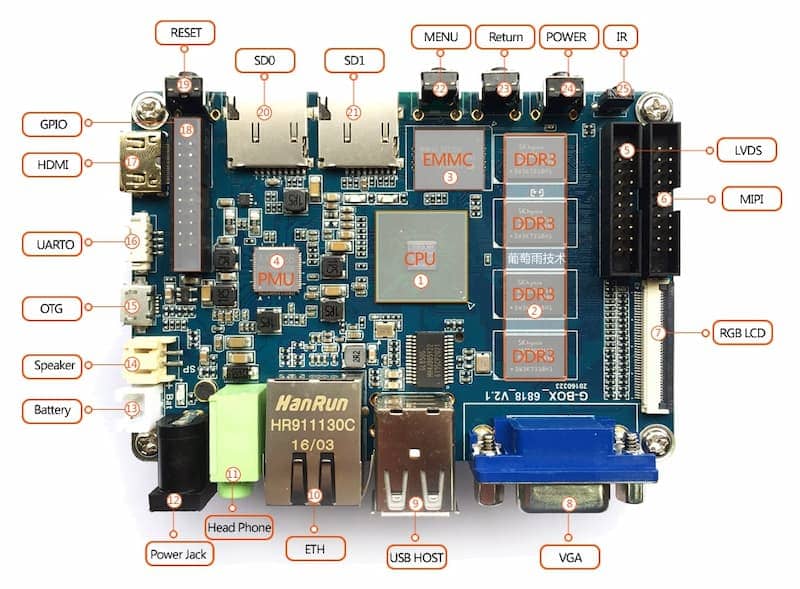

【1】CPU：S5P6818, ARM Cortex A53, 8*1.4GHz 【2】Memory:DDR3, 1GB, 2GB compatible [1GB standard configuration, 2GB customizable] 【3】Flash: 8GB, EMMC [8GB standard configuration, 4GB/16GB customizable] 【4】 PMU: power management chip, AXP228 【5】 LVDS interface: LCD that can be connected to LVDS interface 【6】 MIPI interface: LCD with MIPI interface 【7】 RGB interface: RGB output interface 【8】 VGA interface: SDA7123 VGA interface 【9】 USB HOST: 2 USB HOST 【10】 Gigabit Ethernet interface: RJ45, Gigabit Ethernet interface 【11】 Headphone connector: headphone output 【12】 5V input jack: DC power input port 【13】 Battery interface: single 4.2V lithium battery interface 【14】 Speaker interface: external speaker output 【15】 USB OTG: USB OTG interface 【16】 UART0: serial port 0, debugging serial port 【17】 HDMI interface: HDMI output interface 【18】 Extension GPIO: UART, SPI, I2C, ADC extension 【19】 Reset button: Reset 【20】 TF card, SD0: TF card, using channel 0 【21】 TF card, SD1: TF card, using channel 1 【22】 key, user-defined: independent key, defined as MENU 【23】 key, user-defined: independent key, defined as Return 【24】Soft switch on/off button: switch on/off, sleep wake-up button 【25】 Integrated infrared receiver: HS0038B, infrared receiver 【26】 Gigabit Ethernet PHY: RT8211E 【27】RTC: RTC backup battery 【28】 WiFi Bluetooth: rt8723bu, WiFi, Bluetooth two in one module 【29】 UART2: Serial port 2, ttl level 【30】 Camera interface: BT601, BT656 camera interface |
|---|---|
Other | System support: Android, Linux, Ubuntu and other systems |
|
