| CPU | S5P4418 ARM Cortex-A9 |
|---|---|
| Frequency | 1.4GHz*4 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB eMMC optional |
The S5P4418 single board computer is almost one third of the S5P4418 development board size, but with better performance than the S5P4418 development board. It nearly covers all the peripheral functions of the development board, as well as onboard VGA, USB WIFI/BT two in one module, etc.
Software: S5P4418 SBC is completely compatible with S5P4418 development board, it’s unnecessary to make any modification.
Hardware: S5P4418 is completely compatible with S5P6818, it’s only needed to change the SoC to upgrade A9 Quad Core to A53 Octa Core. It's convenient for clients to upgrade their products.
Hardware |

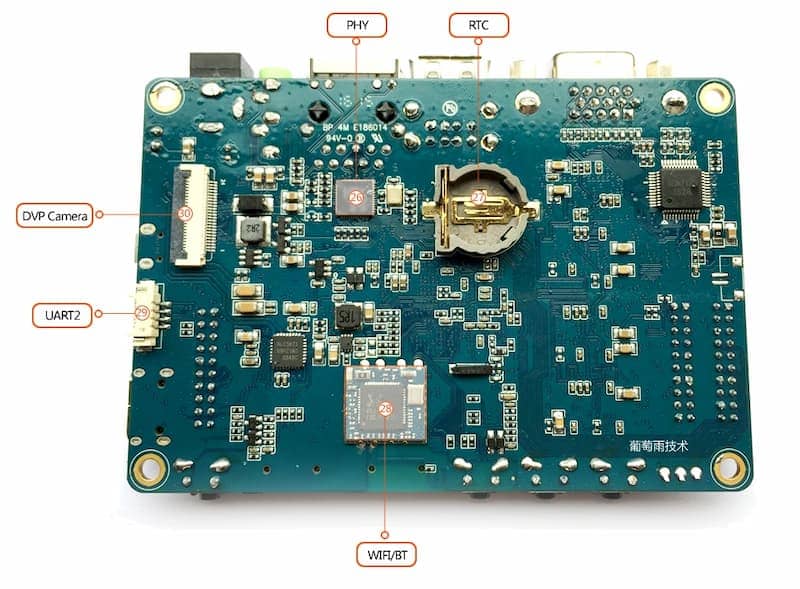

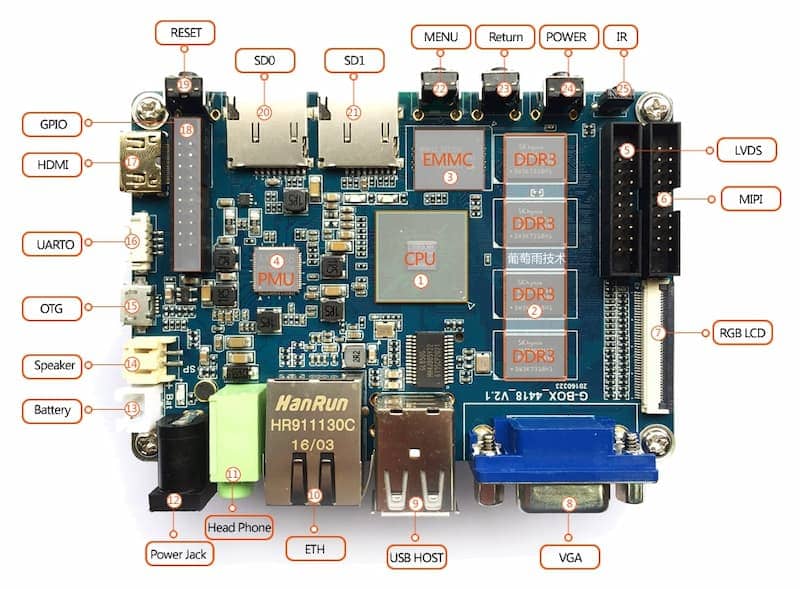

【1】CPU：S5P4418，ARM Cortex A9,4*1.4GHz 【2】 Memory: DDR3,1GB, 2GB compatible [1GB standard configuration, 2GB optional] 【3】 Memory: 8GB, EMMC [8GB standard configuration, 4GB/16GB optional] 【4】 PMU: power management chip, AXP228 【5】 LVDS interface 【6】 MIPI interface: LCD with MIPI interface 【7】 RGB interface: RGB output interface 【8】 VGA interface: SDA7123 VGA interface 【9】 USB HOST: 2 USB HOST 【10】 Gigabit Ethernet interface: RJ45, Gigabit Ethernet interface 【11】 Headphone interface: headphone output 【12】 5V input jack: DC power input port 【13】 Battery interface: single 4.2V lithium battery interface 【14】 Speaker interface: external speaker output 【15】 USB OTG: USB OTG interface 【16】 UART0: serial port 0, debugging serial port 【17】 HDMI interface: HDMI output interface 【18】 Extension GPIO: UART, SPI, I2C, ADC extension 【19】 Hard reset button: hard reset 【20】 TF card, SD0: TF card, using channel 0 【21】 TF card, SD1: TF card, using channel 1 【22】 key, user-defined: independent key, defined as MENU 【23】key, user-defined: independent key, defined as Return 【24】 Soft switch on/off button: switch on/off, sleep wake-up button 【25】 Integrated infrared receiver: HS0038B, infrared receiver 【26】 Gigabit Ethernet PHY: RT8211E 【27】 RTC: RTC backup battery 【28】 WiFi Bluetooth: rt8723bu, WiFi, Bluetooth two in one module 【29】 UART2: Serial port 2, ttl level 【30】 Camera interface: BT601, BT656 camera interface |
|---|---|
Other | System support: Android, Linux, Ubuntu and other systems |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Samsung S5P4418 Single Board Computer |
File does not exist! |
File does not exist! |
The S5P4418 single board computer is almost one third of the S5P4418 development board size, but with better performance than the S5P4418 development board
S5P4418 Single Board Computer
S5P4418 development board contains of system on module, carrier board and LCD board. The system on module takes 8-layer process design
S5P4418 Development Board

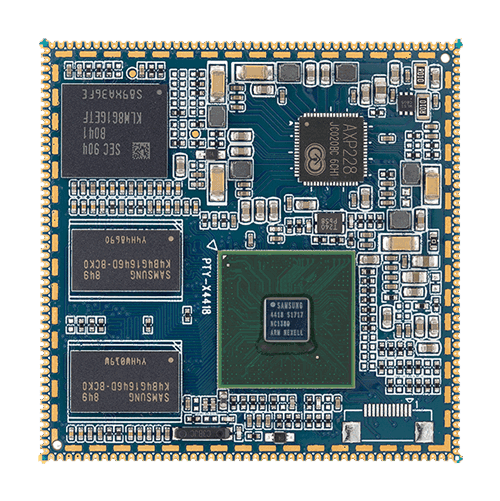

S5P4418 system on module ( for short S5P4418 SOM ) is a product platform based on Samsung S5P4418 (A9 quad-core) chip that designed by Graperain.
