| CPU | S5P6818 ARM Cortex-A53 |
|---|---|
| Frequency | 1.6GHz*8 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 8GB/16GB eMMC optional |

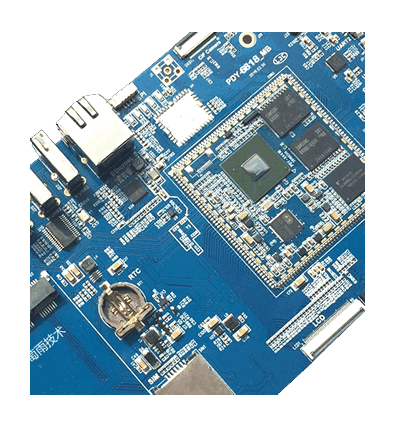

S5P6818 development board contains of stamp hole system on module, carrier board and LCD board. The system on module uses 8-layer process design, and is stable, which could be used in tablet pc, car machine, learning machine, POS machine, game machine, industry monitoring and many other fields. The CPU uses ARM Cortex-A53 octa-core S5P6818, the highest main frequency is 1.4G+Hz. The carrier board reserves rich peripherals, can debug almost all the features of the S5P6818. It supports Gigabit Ethernet, collect LVDS interface, MIPI interfaces, PCIE interface onboard, supports software power switch and dormancy awake. 7 inch TFT LCD screen is taken as the default LCD display, while 4.3 inch and 5 inch can also be the optional choices. It also supports backlight brightness control. The S5P6818 system on module could be used in MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed.
S5P6818 SoM size：52mm*52mm

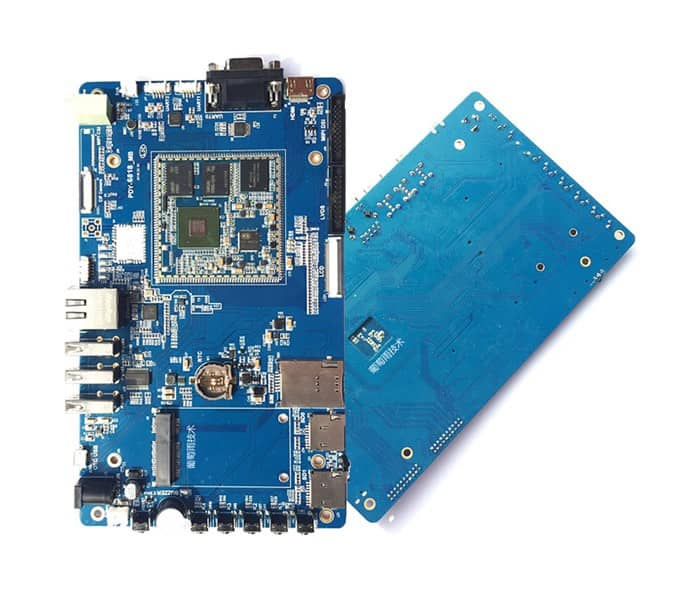

S5P6818 carrier board size： 185mm*110mm
LCD | 1. LCD Display size: 7-inch capacitive touch screen 2. Resolution: 1024 * 600 |
|---|---|
Parameters | Appearance: stamp hole Size: 52mm * 52mm * 3mm Pin pitch: 1.1mm Pin pad size: 1.3mm * 0.7mm Number of pins: 184 PIN, which can meet various expansion requirements of users Process: 8-layer CPU: S5P6818, octa core Cortex-A53, 1.4GHz+ Memory: Single channel DDR3 design, 1GB standard configuration, 2GB customizable Flash: 4GB/8GB/16GB/32GB eMMC optional, 8GB standard configuration Power IC: use AXP228, support dynamic frequency modulation, coulometer, etc. Ethernet: RTL8211E Gigabit Ethernet PHY |
| Hardware Interface |

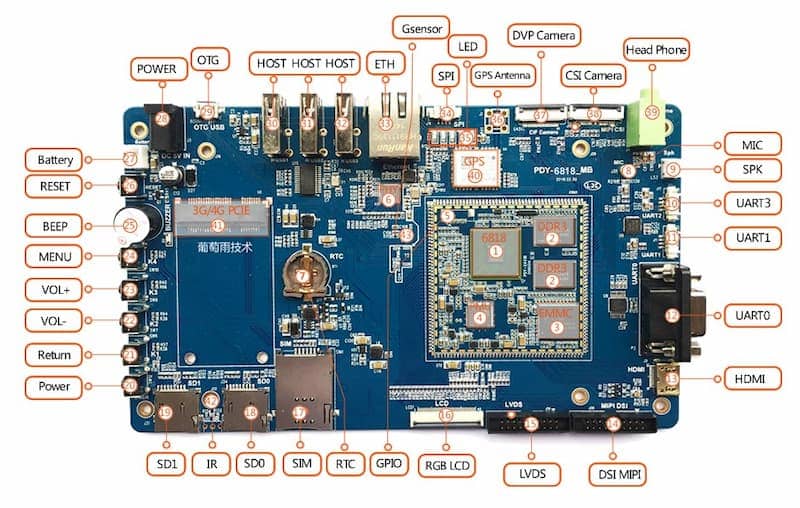

【1】CPU：S5P6818, ARM Cortex A53, 8*1.4GHz+ 【2】 Memory: DDR3, 1G[1GB standard configuration, 2GB customizable] 【3】 Flash: eMMC, 8G [8GB standard configuration, 4GB/16GB customizable] 【4】 PMU: power management chip, AXP228 【5】 Extended IO 【6】 Ethernet: Ethernet PHY, RTL8211E 【7】 RTC: RTC backup battery slot 【8】 Headset: recording input 【9】 Speaker interface: external speaker output 【10】 UART3: Serial port 3 【11】 UART1: Serial port 1 【12】 UART0: serial port 0, debugging serial port 【13】 HDMI: HDMI output interface 【14】 DSI MIPI: MIPI display interface 【15】 LVDS: LVDS display interface 【16】 RGB LCD/VGA: RGB output interface 【17】 SIM card slot 3G/4G: SIM card slot 【18】 SD card, CH0: SD card, channel 0 【19】 SD card, CH1: SD card, channel 1 【20】 Soft switch on/off button: switch on/off, sleep wake-up button 【21】 key, return: independent key, K1 【22】 Key, Volume -: Independent key, K2 【23】 key, volume+: independent key, K3 【24】key, menu: independent key, K4 【25】 Buzzer: support active buzzer 【26】 Hard reset button: hard reset holding 【27】 Battery interface: single 4.2V lithium battery interface 【28】 5V input jack: DC power input port 【29】USB OTG: USB OTG interface 【30】 USB HOST1: HUB chip expansion, HOST 【31】 USB HOST2: HUB chip expansion, HOST 【32】 USB HOST3: HUB chip expansion, HOST 【33】 Gigabit Ethernet interface: RTL8211E interface 【34】SPI interface: SPI interface 【35】 LED lamp: power indicator lamp and 4-way LED lamp 【36】 GPS antenna: GPS module antenna 【37】 DVP camera: parallel camera interface 【38】 CSI camera: Mipi camera interface 【39】 Headphone: headphone output 【40】 GPS module: GPS module 【41】3G/4G PCIE interface slot: it can be connected to 3G/4G PCIE module 【42】 Infrared interface head: HS0038 infrared integrated receiver head 【43】 G-sensor: gravity sensor mma8653 |
Other | System support: Android, Linux, Ubuntu and other systems |
|
