| CPU | S5P6818 ARM Cortex-A53 |
|---|---|
| Frequency | 1.6GHz*8 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 8GB/16GB eMMC optional |

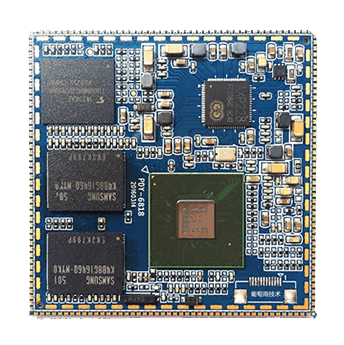

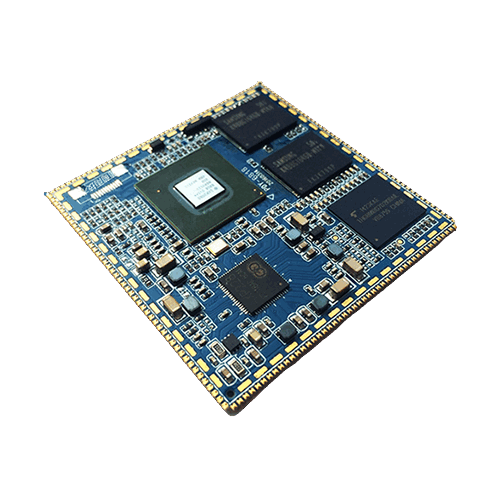

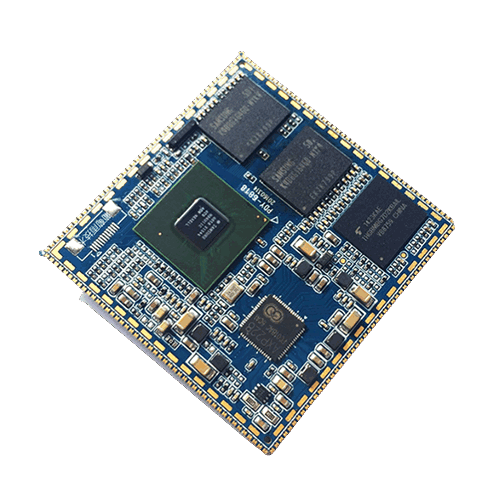

S5P6818 System on Module is a new product platform based on Samsung S5P6818(A53 octa core) chip that designed by Graperain. The S5P6818 takes stamp hole System on Module and carrier board. It is so strong expandability, supports at most 184PIN, running 1.4G+Hz. PCB designed 8 layers in immersion gold, and is of best electrical specification and anti-interference characteristic, and work stable. It onboard PMU, and with coulombmeter charging, integrating the gigabit Ethernet firstly. The System on Module can be used in MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed. S5P6818 takes 28nm craftsmanship, built-in high performance A53 ARM octa core architecture. It supports mostly format video decoding, and onboard LVDS and RGB double channels display control interface. Its resolution ratio is 2048*1280@60Hz. Meanwhile it integrates the Gigabit Ethernet controller inside. About electrical level, S5P6818 is 3.3V GPIO, S5P6818 is convenient to develop products.
Structural | 1. Appearance: Stamp hole 2. System on module size: 52mm*52mm*3mm 3. Pin pitch: 1.1mm 4. Pin pad size: 1.3mm*0.7mm 5. Pin quantity: 184 PIN 6. Process: 8-layer gilding process design |
|---|---|
System | CPU: S5P6818, octa core Cortex-A53, 1.4GHz+ Memory: Single channel DDR3 design, 1GB standard configuration, 2GB customizable Storage: 4GB/8GB/16GB/32GB eMMC optional, 8GB standard configuration Power IC: use AXP228, support dynamic frequency modulation, coulometer, etc. Ethernet: RTL8211E Gigabit Ethernet PHY |
| Interface Parameters | LCD interface: support TFT, LVDS, MIPI interfaces Touch interface: capacitive touch, resistive touch Audio interface: AC97/IIS interface, supporting audio recording and playback SD card interface: two SDIO output channels eMMC interface: onboard eMMC interface, pins are not led out separately Ethernet interface: support gigabit Ethernet USB HOST interface: one channel HOST2.0, one channel HSIC USB OTG interface: one OTG2.0 UART interface: 4 serial ports, 3 outgoing ports, and flow control serial ports PWM interface: 4-channel PWM output IIC interface: 2 channel IIC output SPI interface: 1 channel SPI output ADC interface: 2 channel ADC Camera interface: 1 channel BT656/BT601, 1 channel MIPI CSI VGA interface: expand with LCD output interface Boot config.: No, the system on module boot automatically |
Electrical | Input voltage: 3.7~5.5V (5V input is recommended) Output voltage: 3.3V/4.2V (power supply for carrier board and charging battery) Storage temperature: -40~80 ℃ Operating temperature: -30~70 ℃ |
Other | System support: Android, Linux, Ubuntu and other systems |
|
