| CPU | S5P4418 ARM Cortex-A9 |
|---|---|
| Frequency | 1.4GHz*4 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB eMMC optional |

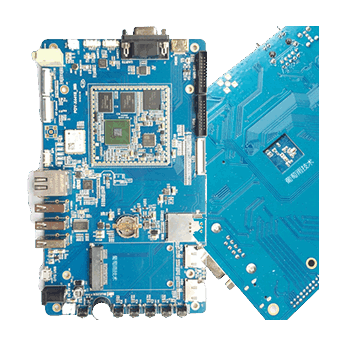

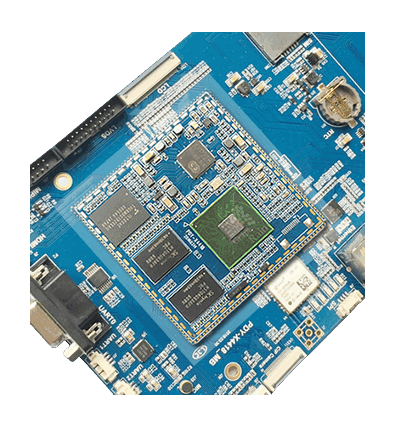

S5P4418 development board contains of system on module, carrier board and LCD board. The system on module takes 8-layer process design, which could be used in tablet pc, car machine, learning machine, POS machine, game machine, industry monitoring and many other fields. S5P4418 SOM is the sister version with Exynos4412 SOM, Its CPU upgrade from Exynos4412 into S5P4418, and basic frequency at 1.4Ghz. The carrier board has rich peripherals, can debug almost all the features of the S5P4418 SOM. It has Gigabit Ethernet, LVDS interface, MIPI interfaces, PCIE interface onboard, software power switch and dormancy awake. And 7 inch TFT LCD screen is taken as the default LCD panel, while 4.3 inch and 5 inch can also be the optional choices. It also supports backlight brightness control. It is worth mentioning that,S5P4418 development board adds a integrated infrared receiver head which makes it to be a 4 core speed TV set-top box with the free online TV player software such as Thai express video etc, that can completely replace the home cable TV and set-top boxes purchased on the market.
S5P4418 System on module Size：52mm*52mm
S5P4418 Carrier Board Size： 185mm*110mm
LCD | 1. LCD Display size: 7-inch capacitive touch screen 2. Resolution: 1024 * 600 |
|---|---|
Parameters | Appearance: stamp hole Size: 52mm*52mm*3mm Pin pitch: 1.1mm Pin pad size: 1.3mm * 0.7mm Number of pins: 184 PIN Process: 8-layer CPU: Samsung S5P4418, Quad Core Cortex-A9, 1.4 Ghz Memory: Single channel DDR3 design, 1GB standard configuration, 2GB customizable Storage: 4GB/8GB/16GB/32GB emmc optional, 8GB standard configuration Power IC: AXP228, support dynamic frequency modulation, coulometer, etc. Ethernet: RTL8211E Gigabit Ethernet PHY |
| Hardware Interface |

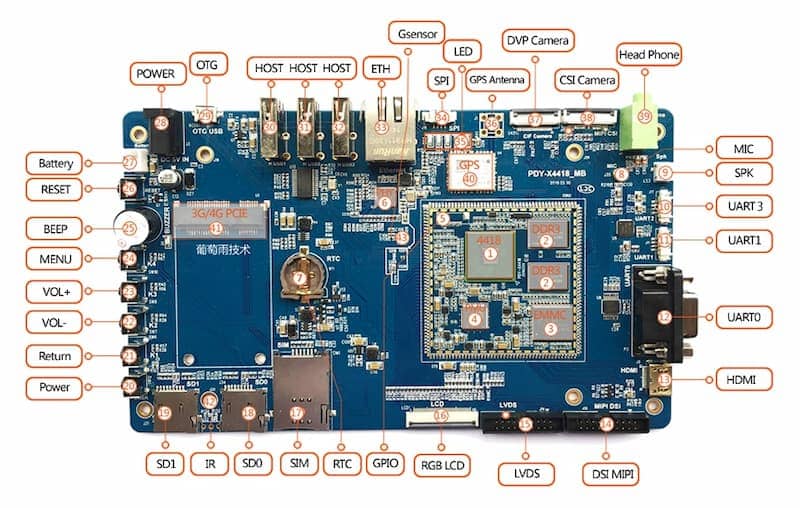

【2】 Memory: DDR3, 1G [1GB standard configuration, 2GB customizable] 【3】 eMMC: eMMC, 8G [8GB standard configuration, 4GB/16GB customizable] 【4】 PMU: power management chip, AXP228 【5】 Extended IO 【6】 Ethernet: Ethernet PHY, RTL8211E 【7】 RTC: RTC backup battery slot 【8】 Headset: recording input 【9】 Speaker interface: external speaker output 【10】 UART3: Serial port 3 【11】 UART1: Serial port 1 【12】 UART0: serial port 0, debugging serial port 【13】 HDMI interface: HDMI output interface 【14】 DSI MIPI interface: MIPI display interface 【15】 LVDS interface: LVDS display interface 【16】 RGB LCD/VGA interface: RGB output interface 【17】 SIM card slot 3G/4G: SIM card slot 【18】 SD card, CH0: SD card, channel 0 【19】 SD card, CH1: SD card, channel 1 【20】 Soft switch on/off button: switch on/off, sleep wake-up button 【21】 key, return: independent key, K1 【22】 Key, Volume -: Independent key, K2 【23】 key, volume+: independent key, K3 【24】 key, menu: independent key, K4 【25】 Buzzer: support active buzzer 【26】 Hard reset button: hard reset holding 【27】 Battery interface: single 4.2V lithium battery interface 【28】 5V input jack: DC power input port 【29】 USB OTG: USB OTG interface 【30】 USB HOST1: HUB chip expansion, HOST 【31】 USB HOST2: HUB chip expansion, HOST 【32】 USB HOST3: HUB chip expansion, HOST 【33】 Gigabit Ethernet interface: RTL8211E interface 【34】 SPI interface: SPI interface 【35】 LED lamp: power indicator lamp and 4-way LED lamp 【36】 GPS antenna: GPS module antenna 【37】 DVP camera interface: parallel camera interface 【38】 CSI camera interface: Mipi camera interface 【39】 Headphone interface: headphone output 【40】 GPS module: GPS module 【41】 3G/4G PCIE interface slot: it can be connected to 3G/4G PCIE module 【42】 Infrared interface head: HS0038 infrared integrated receiver head 【43】 Gsensor: gravity sensor mma8653 |
Other | System support: Android, Linux, Ubuntu and other systems |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Samsung S5P4418 Development Board |
File does not exist! |
File does not exist! |
S5P4418 development board contains of system on module, carrier board and LCD board. The system on module takes 8-layer process design
S5P4418 Development Board
The S5P4418 single board computer is almost one third of the S5P4418 development board size, but with better performance than the S5P4418 development board
S5P4418 Single Board Computer
S5P4418 system on module ( for short S5P4418 SOM ) is a product platform based on Samsung S5P4418 (A9 quad-core) chip that designed by Graperain.
S5P4418 System on Module
S5P6818 development board contains of stamp hole system on module, carrier board and LCD board. The system on module uses 8-layer process design
S5P6818 Development Board
