| CPU | RK3568 ARM Cortex-A55 |
|---|---|
| Frequency | 2.0GHz*4 |
| RAM | 2GB/4GB/8GB DDR3 optional |
| EMMC | 8GB/16GB/32GB/64GB/128GB eMMC optional |

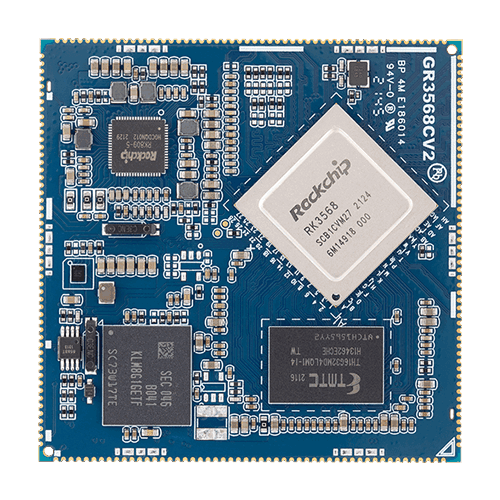

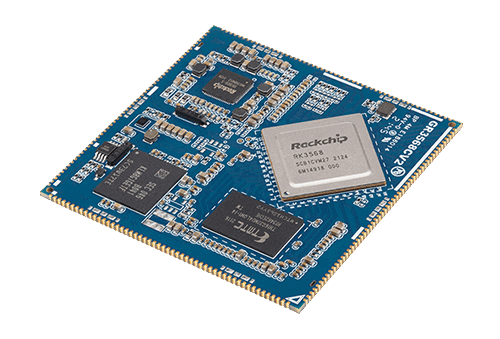

The EMBSOM RK3568 SoM integrates a high-performance quad-core Cortex-A55 CPU (up to 2.0 GHz), Mali-G52 GPU, and 1 TOPS NPU. Featuring dual Gigabit Ethernet, PCIe, SATA3.0, USB3.0, and rich display interfaces, it's perfect for industrial, AIoT, and edge systems.
| Feature | Specification |
|---|---|
| CPU | Quad-Core Cortex-A55 @ up to 2.0 GHz |
| GPU / NPU | Mali-G52, 1 TOPS NPU |
| Memory | 2 GB standard (4 GB/8 GB optional) |
| Storage | eMMC 8/16/32/64/128 GB |
| Interfaces | Dual GbE, PCIe 3.0, SATA 3.0, USB 3.0, USB 2.0 |
| Display | HDMI, MIPI-DSI, eDP, LVDS |
| Dimensions | 55.8 mm × 55.8 mm × 3 mm |
| OS Support | Android 11, Linux, Ubuntu, Debian |
Edge AI and gateway systems
Multimedia terminals
Industrial automation
Smart kiosks and displays

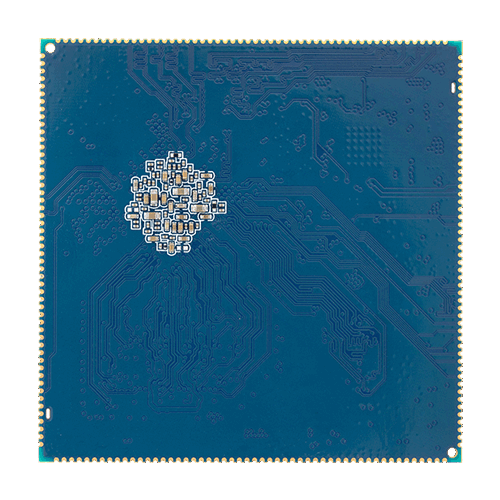

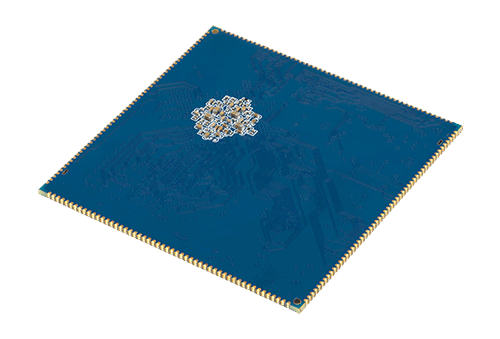

Structural | 1. Appearance: Stamp hole method 2. Size: 55.8mm*5.8mm*3mm 3. Pin pitch: 1mm 4. Number of pins: 208 PINs, to meet various expansion needs of users 5. Process: 8-layer immersion gold process design, PCB production by Taiwan-funded manufacturers |
|---|---|
System | CPU: RK3568, Cortex A55 quad-core 2.0GHz, considered to be the most promising ARM processor in recent years Memory: Using LPDDR4 design, standard 2GB, customizable 4GB/8GB [standard 2GB, customizable 4GB/8GB] Storage: 8GB/16GB/32GB/64GB/128GB emmc optional, standard 8GB [standard 8GB, customizable 32GB/16GB] Power IC: RK809 Graphics processor: Integrated ARM G52 2EE graphics processor, supports OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware, and can support 4K 60fps H.265/H.264/VP9 Video decoding, support 1080P 100fps H.265/H.264 video encoding, support 8M ISP, support HDR, NPU supports 0.8T computing power, such a powerful GPU and NPU can be applied to computer vision, machine learning, 4K 3D rendering, etc. Practical applications. [Exclusive Support] |
| Interface Parameters | Display interface: MIPI interface, eDP output Ethernet: Using RTL8211F Gigabit Ethernet PHY Audio interface: IIS/PCM interface, support recording and playback SD card interface: 2 SDIO output channels emmc interface: onboard emmc interface, the pins are not led out separately Ethernet interface: supports two Gigabit Ethernet USB HOST interface: 2 channels HOST2.0, 1 channel HOST3.0 USB3.0 OTG interface: 1 channel UART interface: 10 serial ports, support serial ports with flow control PWM interface: 12 PWM outputsIIC interface: 6 IIC outputs SPI interface: 3 SPI outputs ADC interface: 5 ADC outputs Camera interface: 1 MIPI input HDMI interface: high-definition audio and video output, audio and video synchronization outputMIPI interface: 1 MIPI RX, 2 MIPI TX EDP interface: support PCIE interface: support PCIe3.0 1x2/2x1 Lane, PCIe2.1 x1 SATA interface: support 3-way SATA3.0 CAN interface: support 3-way CAN |
Electrical | Input voltage: 3.3V/5A Output voltage: 1.8V Storage temperature: -30~80 degrees Working temperature: -20~70 degrees |
Other | System support: support android11, linux, ubuntu, debian operating system Services we provide: RK3568 system on module + carrier board customization + software development + OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
|
