| CPU | RK3568 ARM Cortex-A55 |
|---|---|
| Frequency | 2.0GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |

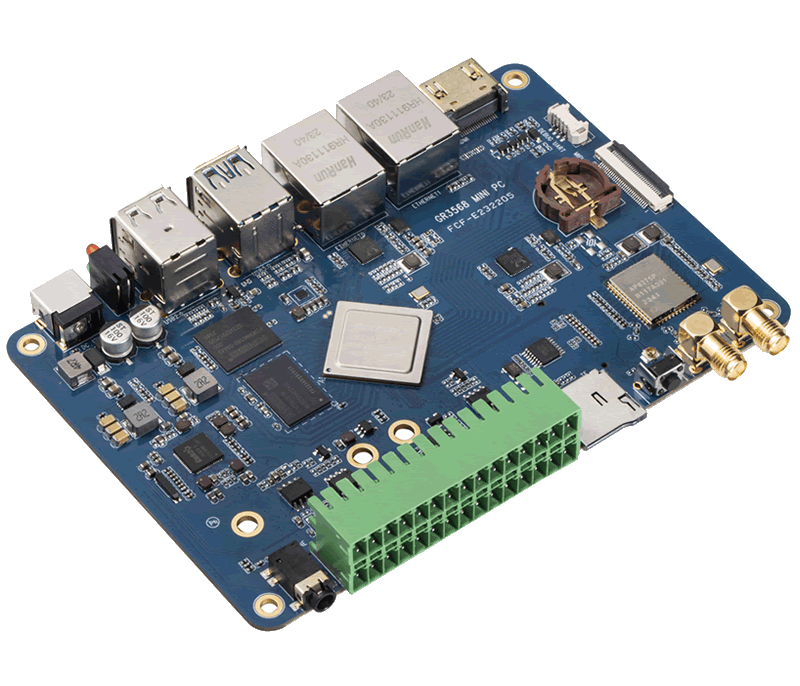

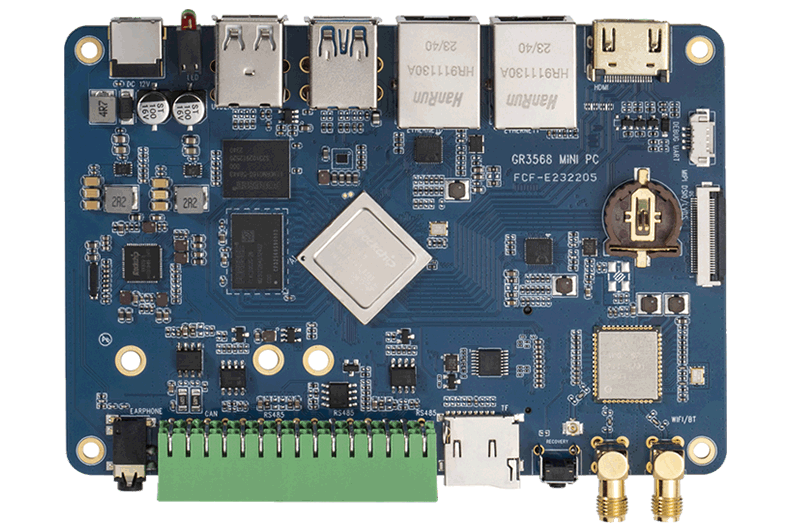

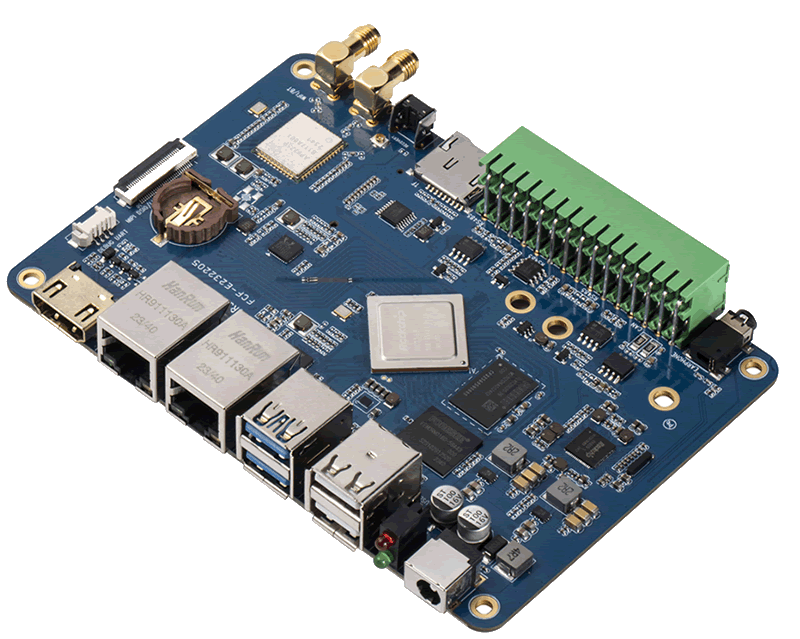

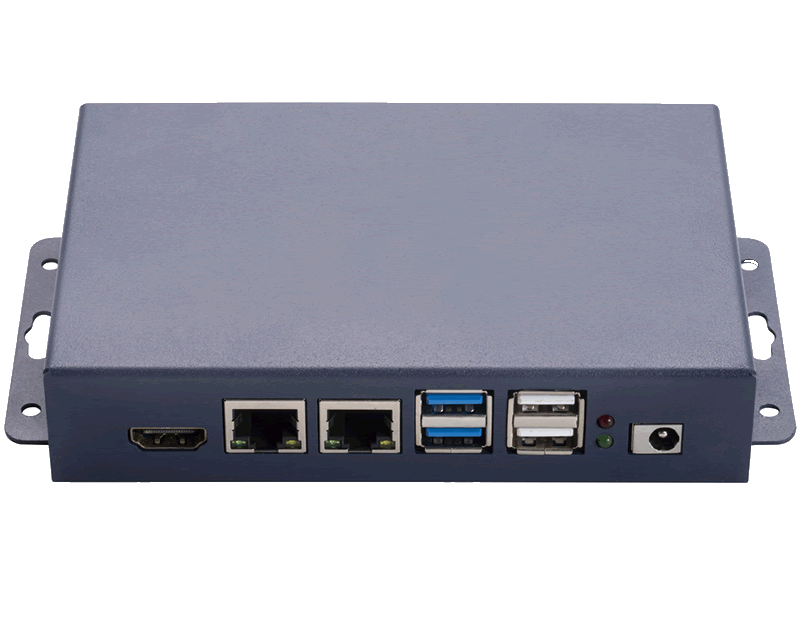

RK3568 MINI PC
Quad-core 64bit Cortex-A55 CPU
22nm, frequency max up to 2.0GHz
Mali-G52 GPU, 1T NPU
DDR max 8GB, M.2 standard interface, 4K 60fps
H.265/H.264/VP9 video decode
Size: 130mm*90mm
Structural | Outlook: Single board computer Size: 130mm*90mm Layer: 8-layer |
|---|---|
System | CPU: Rockhip RK3568 Frequency: Cortex A55 quad-core 2.0GHz RAM: 2GB/4GB/8GB Ipddr4/4x, 2GB as standard version EMMC: 8GB/16GB/32GB/64GB/128GB eMMC, 16GB as standard version Power IC: RK809 GPU: arm G52 GPU, support OpenGL ES1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, inbult 2D hardware acceleration,and 4K 60fps H.265/H.264/VP9 video decode and 1080P 100fps H.265/H.264 video encode, also 8M ISP, HDR, NPU 1T |
| Interface Parameters |

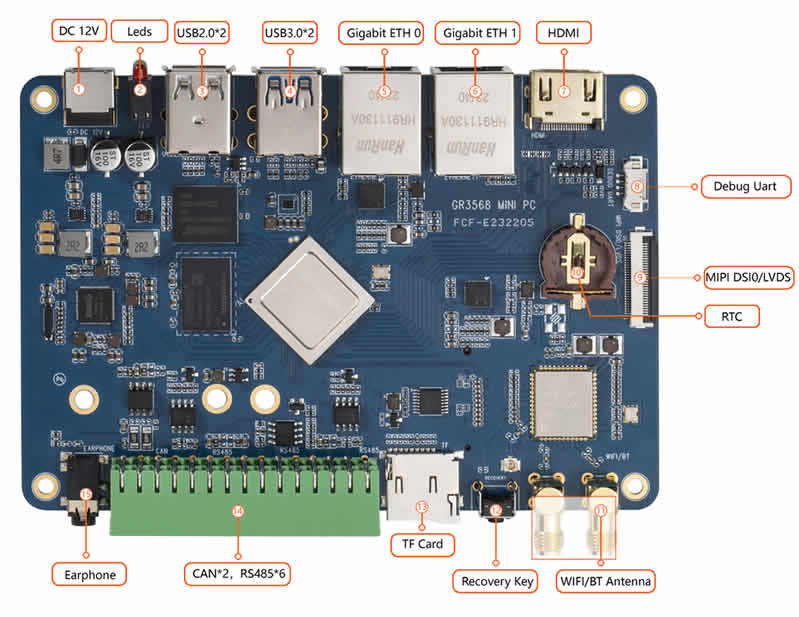

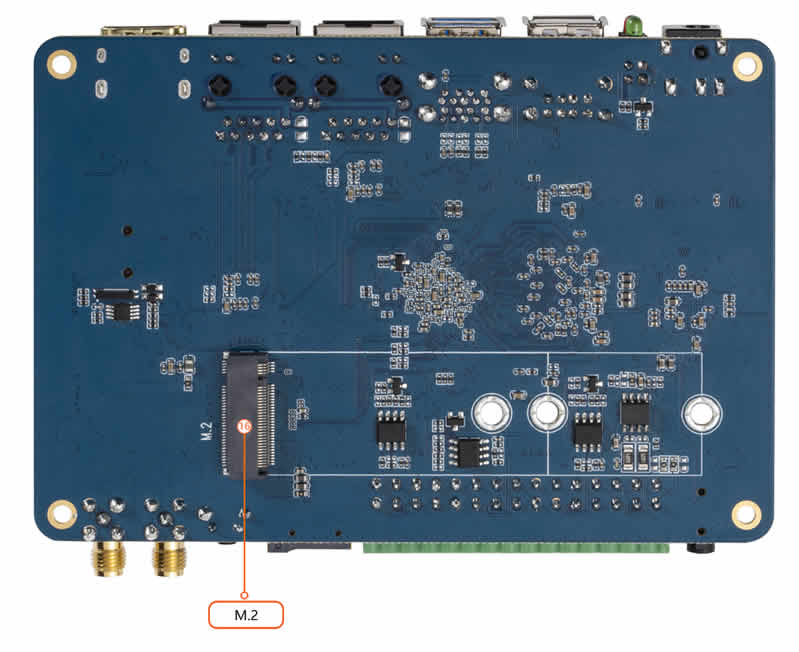

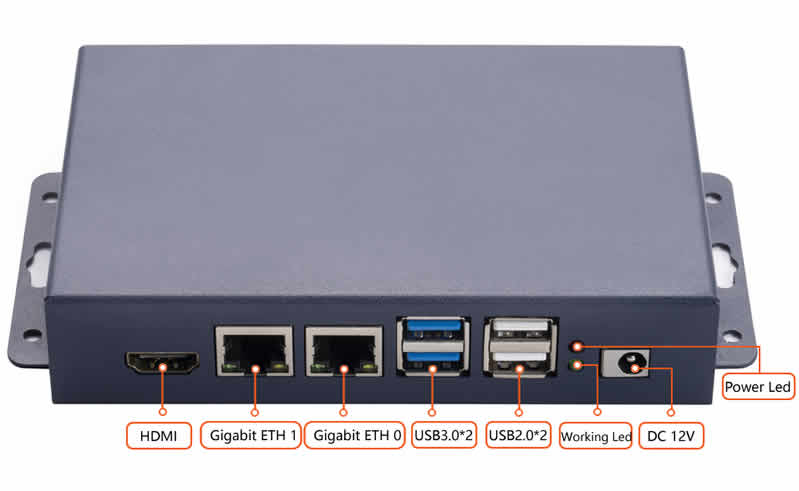

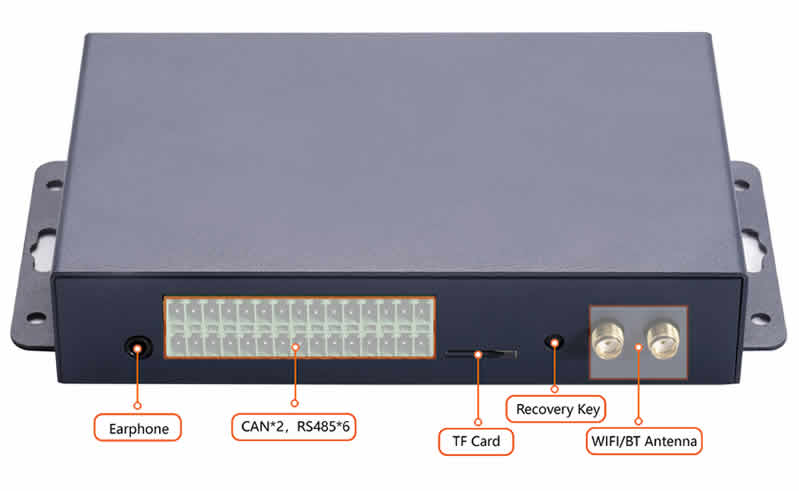

Power: Type-C, 5V-12V Ethernet: Integrated dual channels GMAC Ethernet control machine, come out 1000Mbps Ethernet ( RJ45) Wifi: Wifi + Bluetooth two-in-one module: Support Wifi 6, Support 2.4GHz / 5GHz dual channels Wifi, 802.11a/b/g/n/ac. And support Bluetooth 5.3 Display: 1 x HDMI2.0, max 4K@60Hz 1 x MIPI DSI, max 1920x1080@60fps. Audio: 1 x Phone output ( w/MIC record ), support dual channels 1x HDMI audio output USB：USB2.0x2、USB3.0x2 M.2: M.2 2242, 2280 version SSD TF card: 1 x TF card, max 128GB TF Other interfaces: 6 x UART/RS485 1 x Debug uart 2 x CAN 1 x RTC |
Electrical | Working temperature: -20℃- 80℃ Stroge temperature: -30℃- 80℃ Stroge humidity: 10%～80 % |
Other | OS: Android 11.0, Linux Qt, Ubuntu and Debian OS Customs service: RK3568 system on module and its carrier board customize and software develop and OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
|
