| CPU | RK3568 ARM Cortex-A55 |
|---|---|
| Frequency | 2.0GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |

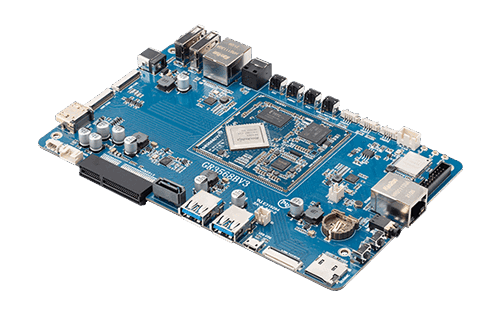

RK3568 development board is a product platform based on the RK3568 (64 bit quad core A55) chip of Rochchip launched by Graperain.
RK3568 development board is mainly composed of RK3568 stamp hole system on module and base plate.
RK3568 development board platform adopts the four core 64 bit processor RK3568 from Rockchip, an excellent domestic chip manufacturer; This RK3568 board uses a quad core Cortex-A55 architecture, with a dominant frequency of up to 2.0GHz. The advanced 22nm process can effectively improve energy consumption performance. Compared with the previous A15/A17 core design, the new core can provide up to 100% performance improvement.
Integrated ARM G52 2EE graphics processor, supporting OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware, and more capable of supporting 4K 60fps H.265/H 264/VP9 video decoding, supporting 1080P 100fps H.265/H 264 video encoding supports 8M ISP, HDR, and NPU supports 0.8T computing power. Such powerful GPU and NPU can be applied to many practical applications such as computer vision, machine learning, 4K 3D rendering, etc.
It has MIPI-CSI interfaces, dual MIPI-DSI, EDP, HDMI, PCIe, SATA, CAN, USB3.0, USB2.0, OTG and other rich interfaces.
In addition to the powerful RK3568, the RK3568 development platform is also equipped with 2GB/4GB LPDDR4, 8GB/16GB/32GB eMMC high-speed memory, independent power management system, strong network expansion capability, rich display interfaces, and support for Android 11, linux, ubuntu, debian and other operating systems. The performance and experience are maximized.
The RK3568 development platform is designed in the way of stamp hole core plate+base plate. The core plate has strong scalability, up to 208 PIN pins, and running speed up to 2.0Hz. PCB is designed with 8-layer process, which has the best electrical characteristics and anti-interference characteristics, and is stable and reliable.
RK3568 development board has rich function expansion interfaces, which can effectively improve the expansion of industry customization. The RK3568 supports PCIe3.0 1x2/2x1 Lane and PCIE2.1 1x1 Lane, meeting the expansion requirements of 4G/5G, wifi6, multiple network interfaces, NPU, etc. The RK3568 supports 3x SATA3.0 to solve various unstable problems of USB expansion SATA of traditional AP processors. It supports up to four USB ports, 1xUSB3.0/USB2.0 HOST+1xUSB3.0/USB2.0 OTG+1xUSB2.0 HOST+1xUSB2.0 HOST. It supports dual gigabit Ethernet ports to meet the multi network port requirements of industrial control and Internet of Things gateways.

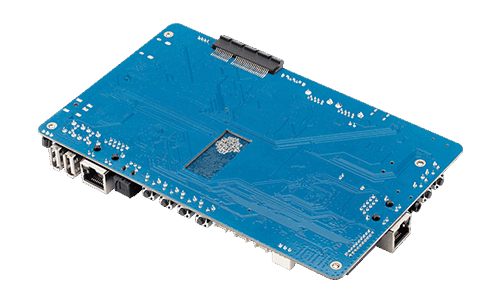

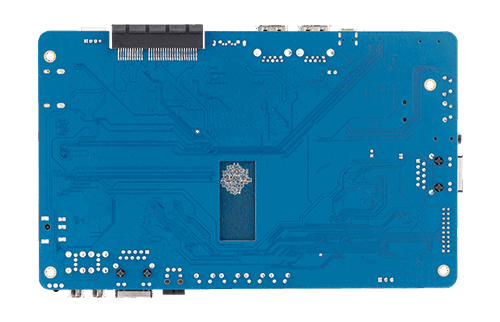

RK3568 core plate size: 55.8mm * 55.8mm RK3568 base plate size: 180mm * 110.5mm
Structural | 1. Appearance: G3568 system on module +carrier board 2. Size: 180mm * 110.5mm 3. Board layer: 8 layers of G3568 system on module/4 layers of carrier board |
|---|---|
System | CPU：Rockchip RK3568 Primary frequency: Cortex A55 quad core 2.0GHz Memory: 2GB standard configuration, 4GB customizable EMMC: 8GB/16GB/32GB emmc optional, 8GB standard Power IC: RK809, ensuring stable and reliable operation; Graphics processor: integrated ARM G52 2EE graphics processor, supports OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration hardware, and more capable of supporting 4K 60fps H.265/H 264/VP9 video decoding, supporting 1080P 100fps H.265/H 264 video encoding, support 8M ISP, support HDR, NPU support 0.8T computing power, so powerful GPU and NPU can be applied to computer vision, machine learning, 4K 3D rendering and many other practical applications. [ Exclusive Support] |
| Interface Parameters | Display interface: MIPI interface, eDP output [exclusive support] Ethernet: RTL8211F Gigabit Ethernet PHY Audio interface: IIS/PCM interface, supporting recording and playback SD card interface: two SDIO output channels Emmc interface: onboard emmc interface, pins are not led out separately Ethernet interface: support two gigabit Ethernet USB HOST interface: 2-way HOST2.0, 1-way HOST3.0 [support] USB3.0 OTG interface: 1 channel UART interface: 10 serial ports, supporting flow control serial ports PWM interface: 12 channel PWM output IIC interface: 6-channel IIC output SPI interface: 3-way SPI output ADC interface: 5-channel ADC output Camera interface: 1-way MIPI input [exclusive support] HDMI interface: high-definition audio and video output, audio and video synchronous output MIPI interface: 1-way MIPI RX, 2-way MIPI TX EDP interface: support PCIE interface: supports PCIe3.0 1x2/2x1 Lane, PCIe2.1 x1 SATA interface: support 3-way SATA 3.0 CAN interface: support 3-way CAN |
Electrical | Input voltage: 12V Output voltage: 1.8V Storage temperature: - 30~80 ℃ [Exclusive support] Operating temperature: - 20~70 ℃ |
Hardware |

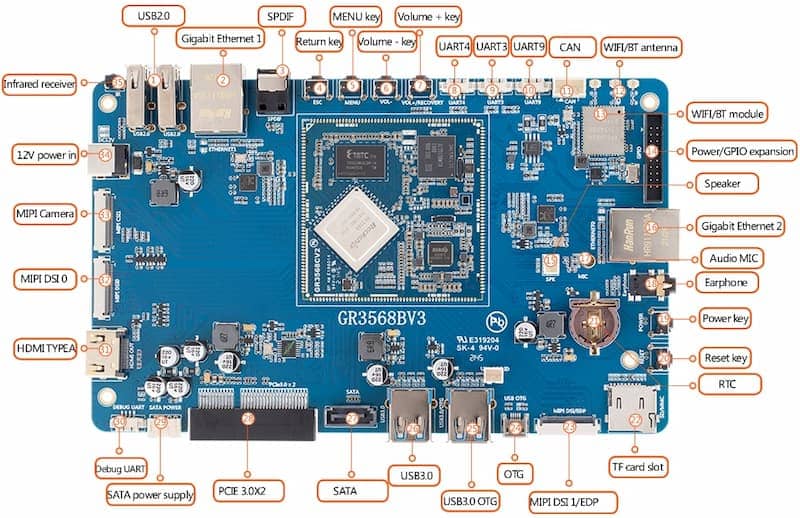

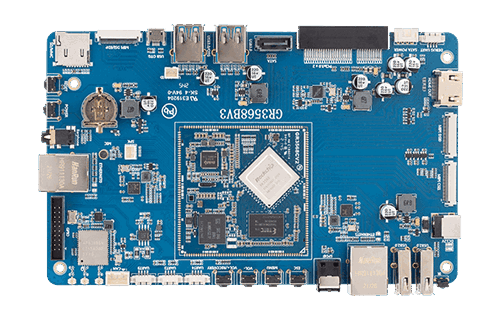

【1】 USB2.0: USB2.0 host interface 【2】 Gigabit network interface 1: RJ45 interface 【3】 SPDIF: SPDIF interface 【4】 Return key: return key 【5】 MENU key: MENU key 【6】 Volume key: Volume key 【7】 Volume+key: Volume+key 【8】 UART4: UART4 serial port 【9】 UART3: UART3 serial port 【10】 UART9: UART9 serial port 【11】 CAN interface: CAN interface 【12】 WIFI/BT antenna: WIFI, BT antenna interface 【13】 WIFI/BT module: WIFI, BT module 【14】 Power/gpio expansion: POWER, GPIO expansion port 【15】 Horn: horn interface 【16】 Gigabit network interface 2: RJ45 interface 【17】 Audio MIC: microphone input 【18】 Headphone connector: headphone audio output 【19】 Power key: Sleep/Wake key 【20】 Reset key: reset key 【21】 RTC: RTC power supply interface 【22】 TF card slot: TF card slot 【23】 MIPI DSI1/EDP interface: MIPI DSI 1, EDP LCD display interface 【24】 OTG: USB OTG interface 【25】 USB3.0 OTG: USB3.0 OTG interface, sharing a set of data with OTG 【26】 USB3.0: USB3.0 HOST interface 【27】 SATA interface: SATA hard disk interface 【28】 PCIE 3.0x2: PCIE 3.0x2 interface 【29】 SATA power supply base: SATA power supply interface 【30】 Debugging serial port: debugging serial port 【31】 HDMI TYPEA: HDMI TYPEA output 【32】MIPI DSI 0: MIPI LCD display interface 【33】 MIPI camera: MIPI camera interface 【34】 12V power supply base: 12V power supply interface 【35】 Infrared reception: infrared reception |
Other | System support: Support Android11, Linux, Ubuntu, Debian systems, open source code to facilitate development and accelerate the development cycle. Our service: RK3568 system on module+carrier board customization+software development+OEM/ODM |
Application | It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle mounted control terminals, etc., to reduce the R&D threshold and accelerate the product R&D cycle. |
|
