| CPU | RK3562 ARM Cortex-A53 |
|---|---|
| Frequency | 2.0GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |

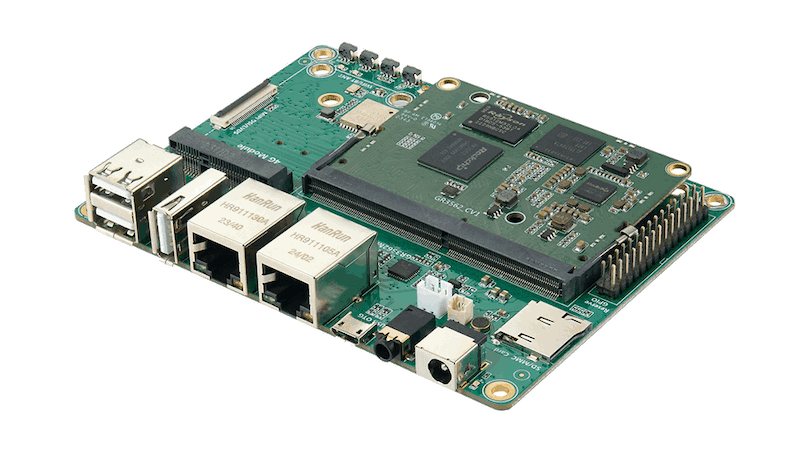

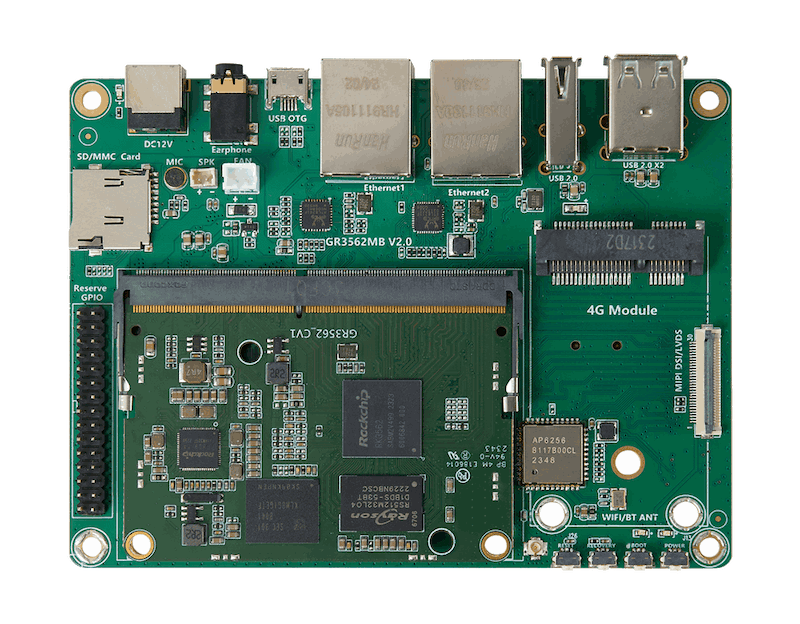

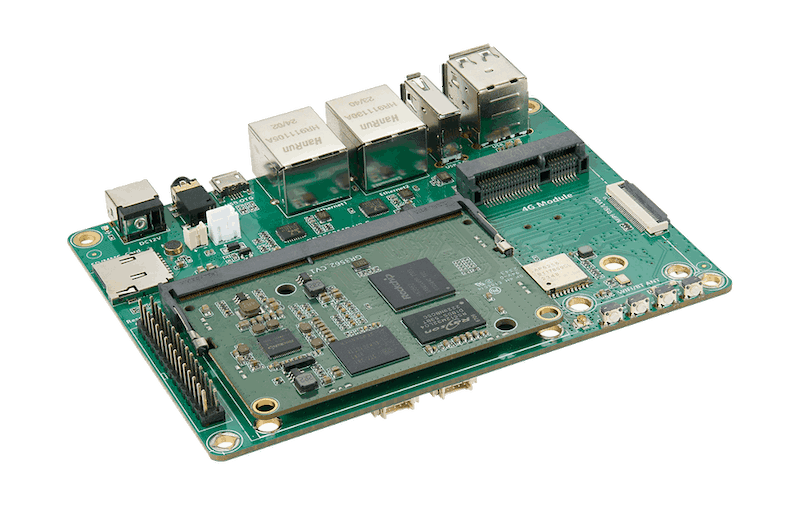

RK3562 Development Board
The size is only 120mm x 90mm. It can be used in final products directly .
It has powerful functions, rich interfaces, and a wide range of applications.
It supports Android13, Ubuntu, Buildroot+QT, and Debian.
Stable and reliable
Structural | Appearance: gold finger system on module + carrier board Size: 120mm x 90mm Board Layer: system on module 8 Layer / carrier board 4 Layer |
|---|---|
System | SOC: Rockchip RK3562 Frequency: Quad core 64 bit Cortex-A53, frequency up to 2GHz GPU: ARM G52 2EE GPU, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, integrate high-performance dedicated 2D processor NPU: Build-in RKNN NPU AI acceleration engine, 1Tops computing power Deep learning frameworks: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet Video codec: 1080P 60fps H.264 encoder 4K 30fps H.265/VP9, 1080P 60fps H.264 decoder Memory: 2GB/4GB/8GB LPDDR4/LPDDR4X EMMC: 8GB/16GB/32GB/64GB/128GB eMMC Support M.2, expandable SSD Support UART, I2C, ADC, PWM, GPIO, USB2.0, MIPI CSI, MIPI DSI, I2S and other expansion interfaces |
| Interface Parameters |

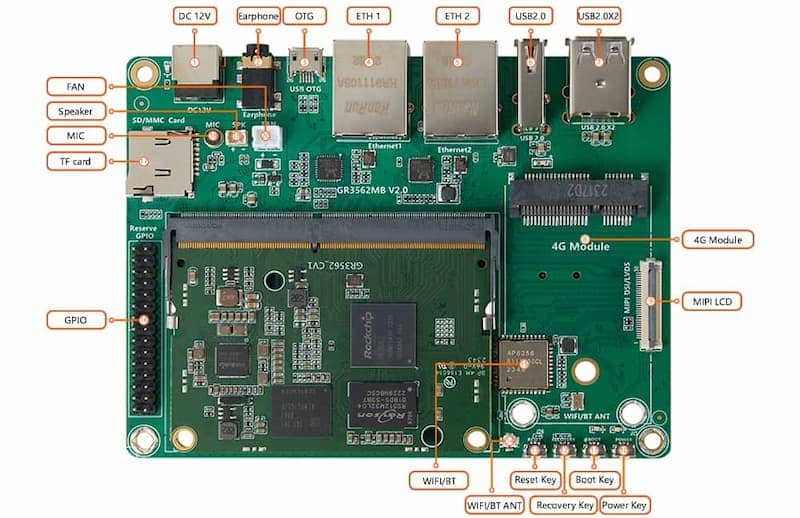

【1】 DC-12V power in 【2】 Earphone output 【3】 USB3.0 OTG 【4】 RJ45 100M Ethernet port 【5】 RJ45 1000M Ethernet port 【6】 USB2.0 HOST 【7】 USB2.0 HOST 【8】 4G module connector 【9】 MIPI DSI/LVDS display 【10】 Power key 【11】 Maskrom/upgrade key 【12】 Recovery/volume+ key 【13】 Reset key 【14】 WIFI, BT antenna 【15】 WIFI, BT module 【16】 GPIO expansion 【17】 TF card 【18】 MIC 【19】 Speaker 【20】 FAN 【21】 M.2 SSD interface 【22】 Uart6 serial port, the default is Bluetooth serial port 【23】 Debug UART 【24】 RTC connector 【25】 MIPI CSI0 【26】 MIPI CSI1r expansion interfaces |
Electrical | Working temperature: 0--70℃ Storage temperature: -20--80℃ Stroge humidity: 10%～80 % |
Other | OS: Android 13, Buildroot+QT, Ubuntu, Debian Cutomize service: RK3562 system on module + carrier board customize + software developing + OEM/ODM |
Application | HD display advertising machines, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals and so on |
|
