CPU	RK3562 ARM Cortex-A53
Frequency	2.0GHz*4
RAM	2GB DDR3/4GB DDR3 optional
EMMC	8GB/16GB/32GB eMMC optional

Rockchip RK3562 System-on-Module for OEM & Embedded Integration

Key Features of RK3562 SOM

Quad-Core Cortex-A55 CPU & Mali-G52 GPU

The RK3562 SOM delivers reliable performance with a quad-core Cortex-A55 CPU and Mali-G52 GPU, suitable for embedded applications, industrial automation, and AIoT devices.

Modular Interfaces for OEM Integration

Equipped with PCIe, USB 3.0, MIPI-DSI/CSI, UART, SPI, I2C, GPIO, and Gigabit Ethernet interfaces, the SOM allows integration into custom baseboards or existing hardware platforms.

Industrial-Grade Reliability

Designed for long-term stable operation in industrial environments with wide temperature range support.

Applications of RK3562 SOM

OEM Embedded Systems

Ideal for integration into custom industrial controllers, AIoT gateways, or automation systems.

Industrial Automation

Supports process control, factory automation, and robotics applications.

AIoT Devices

Perfect for edge AI processing and intelligent IoT deployments.

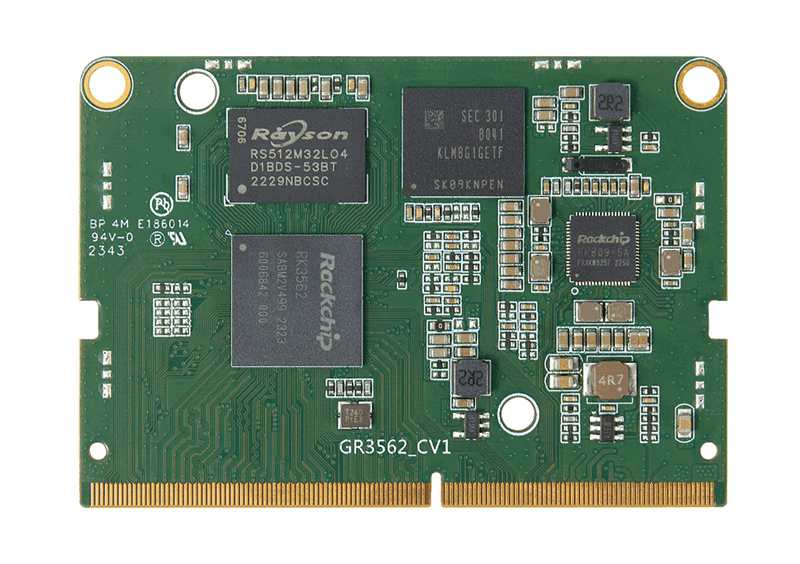

RK3562 System on Module top view

Frequently Asked Questions about RK3562 SOM

1. Can the RK3562 SOM be customized for specific OEM applications?

Yes, hardware and software customization is available to meet specific OEM or industrial integration requirements.

2. Is the RK3562 SOM suitable for long-term industrial deployment?

Yes, it supports wide temperature ranges and ensures stable long-term operation in industrial environments.

3. How can the SOM be integrated into custom hardware?

It can be connected via standard interfaces such as PCIe, USB, UART, and GPIO to your own baseboard or embedded system.

Structural parameters	Appearance：gold finger System Dimension：69.6mm x 48.1mm*3mm Pin distance: 1mm Pin Number: 260PIN Layer: 8-layer
System Configuration	CPU: RK3562, Quad core 64 bit Cortex-A53 Frequency: 22nm, frequency up to 2.0GHz GPU: ARM Mali-G52 GPU. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, integrate high-performance 2D hardware engine NPU: Build-in RKNN NPU AI acceleration engine, 1Tops computing power Deep learning Frameworks:Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet Video Codec: 1080P 60fps H.264 encoder 4K 30fps H.265/VP9, 1080P 60fps H.264 decoder DDR: LPDDR4 DDR, standard 2GB, can be custom to 4GB/8GB EMMC: standard 16GB, 8GB/16GB/32GB/64GB/128GB eMMC Support UART, I2C, ADC, PWM, GPIO, USB2.0, USB3.0, MIPI CSI, MIPI DSI, I2S and other interfaces are supported OS: Android, Ubuntu, Debian, Buildroot+QT
Interface Parameters	Ethernet: 1x 1000Mbps Ethernet(RJ45), 1x 100Mbps Ethernet(RJ45) Wifi: Expandable WiFi+Bluetooth 2-in-1 module via SDIO interface: support 2.4GHz / 5GHz dual band WiFi, 802.11a/b/g/n/ac protocol Support Bluetooth5.0 Supports extended 4G LTE/3G wireless networks Display: 1 x RGB, support 2048x1080@60Hz 1 x MIPI DSI, single channel support 2048x1080@60Hz 1 x LVDS, up to 800x1280@60Hz Audio: 2 x I2S(8 channel input/output), 1 x I2S (2 channel input/output) Camera: 2 x MIPI-CSI (up to 13M) USB: USB2.0x1, USB3.0 OTGx1 PCIE: Support PCIE 2.1 Other interfaces: UARTx10, I2Cx6, ADCx2, PWMx16, GPIOx108, I2Sx3, SPEAKx1, HPOUTx1
Electrical Characteristics	Working temperature: 0℃- 70℃ Stroge temperature:-25℃- 80℃ Stroge humidity: 10%～80 %
Other	OS: Android 13, Buildroot+QT, Ubuntu, Debian Customize service: RK3562 stamp hole system on module + carrier board customize+ software developing+ OEM/ODM
Application	HD display advertising machines, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals and so on Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc.

Product name	Type	Size（KB）	Download the latest version
Rockchip RK3562 System on Module			Rockchip RK3562 System on Module

QWhat is an RK3576 SOM (System on Module)?

A It is a production-ready module built around RK3576, integrating memory, storage, power, and I/O for rapid embedded product development.

QCan the RK3566 SOM be customized for specific project needs?

A Yes, we offer hardware customization based on the RK3566 SOM, including carrier board design, I/O adjustments, display tuning, and BSP modification to fit your exact application scenario.

QIs there documentation and SDK support for the RK3566 SOM?

A Yes, Embsom provides full documentation including schematics, datasheets, user guides, and SDK packages for both Android and Linux, ensuring smooth development and integration with the RK3566 SOM.

QWhat storage methods are supported on the RK3566 SOM?

A The RK3566 SOM supports eMMC, and SD card boot. Optional interfaces like SATA and NVMe SSDs via PCIe make it flexible for different storage demands.

QWhat are the display options available for RK3566 SOM?

A The RK3566 SOM supports multiple display technologies including HDMI 2.0 (up to 4K), MIPI-DSI, LVDS, and eDP, ensuring compatibility with modern display panels in diverse embedded projects.

QWhat is the typical use case for the RK3566 SOM?

A The RK3566 SOM is well-suited for embedded solutions such as edge computing gateways, industrial HMI panels, AI-enabled surveillance devices, and IoT control units that require high reliability and compact size.

QWhat types of interfaces does the RK3566 SOM offer?

A The RK3566 SOM provides a broad range of I/O interfaces including Gigabit Ethernet, PCIe, USB 3.0, MIPI-DSI/CSI, LVDS, I2C, UART, and GPIO, offering excellent expandability for embedded designs.

QDoes the RK3566 SOM include AI processing capabilities?

A Yes, the RK3566 SOM integrates a 1 TOPS NPU, enabling it to efficiently perform edge AI tasks like object classification, people detection, and facial recognition—ideal for smart vision and AIoT systems.

QWhich operating systems are supported by the RK3566 SOM?

A The RK3566 System on Module supports multiple operating systems including Android 12, Debian/Ubuntu Linux, and Buildroot. We provide complete BSPs and documentation to help accelerate custom application development on this platform.

QWhere can I get documentation and development support for the RK3568 SoM?

A Complete hardware manuals, schematics, SDKs, and software documentation are available on request. Engineering support is also available for integration and debugging.
