| CPU | RK3576 ARM quad-core Cortex-A72 and quad-core Cortex-A53 |
|---|---|
| Frequency | 2.2GHz |
| RAM | 2GB DDR3/4GB/8GB/16GB DDR3 optional |
| EMMC | 8GB/16GB/32GB/64GB/128GB/256GB eMMC optional |
RK3576 Development Board
Size is only 130mm x 90mm, can be used directly on the product.
Powerful, rich interface, wide range of applications.
Support Android14, Ubuntu, Linux, Debian operating systems.
Stable and reliable, and the board will not crash after long-term copying.
Structural | Appearance: Gold Finger system on module + carrier board Dimensions: 130mm x 90mm Board layers: system on module 8-layer/carrier board 4-layer |
|---|---|
System | CPU: Rockchip RK3576 Frequency: Octa-core 64-bit 4*A72+4*A53 processor, up to 2.2GHz*8 GPU: ARM G52 MC3 graphics processor, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D acceleration Hardware NPU: 6Tops NPU, supports INT4/INT8/INT16/FP16/BF16/TF32 operation. Support dual-core collaborative or independent work, support multi-task and multi-scenario parallel Codecs: video decoding: 8K@30fps/4K@120fps (H.265/HEVC, VP9, AVS2, AV1), 4K @60fps (H.264/AVC) Video Encoding: 4K@60fps (H.265/HEVC, H.264/AVC) Picture Encoder/Decoder: 4K@60fps MJPGRAM: 2GB/4GB/8GB/16GB LPDDR4/LPDDR4X EMMC: 8GB/16GB/32GB/64GB/128GB/256GB EMMC Built-in Storage Support M.2 Expandable SSD/HDD Built-in 16MP ISP, RGB-IR sensor support, support up to 120db HDR UART, I2C, ADC, PWM, GPIO, CAN, USB3.0, HDMI, EDP, MIPI CSI, MIPI DSI, SAI and other expansion interfaces Other interfaces: 2 x SDIO3.0, 2 x CAN FD, 16 x PWM, 10 x I2C (supports 7-bit and 10-bit address modes), 2 x I3C (conforms to the I2C protocol, supports the SDR mode, and supports up to 10 devices), 12 x UART, Uart0 is Debug uart, Uart1-Uart11 support RS485 function, 7 x SARADC + 1 x SARADC (for boot only) |
| Interface Parameters |

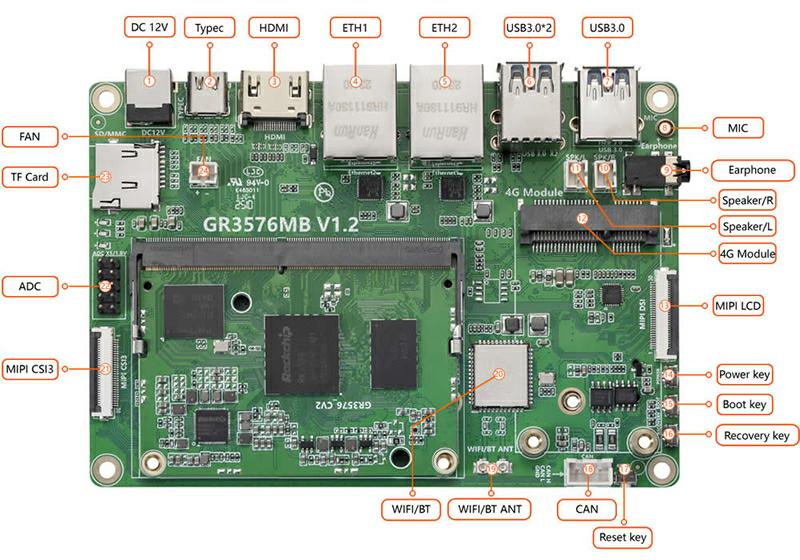

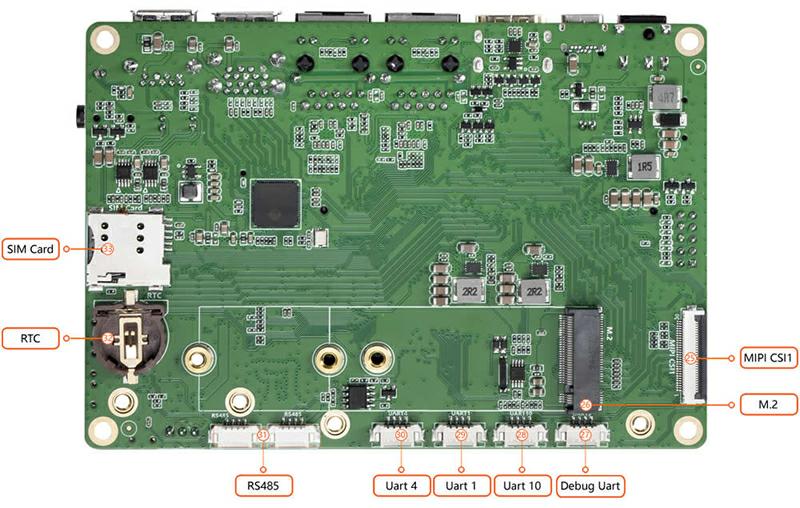

【1】DC12V power supply interface 【2】support Type-c to DP1.4 【3】HDMI2.1 【4】RJ45 Gigabit Ethernet port 【5】RJ45 Gigabit Ethernet port 【6】USB3.0 HOST interface 【7】USB3.0 HOST interface 【8】MIC audio input 【9】headphone jack 【10】speaker right channel 【11】speaker left channel 【12】4G module 【13】MIPI LCD display 【14】power button 【15】boot key 【16】upgrade key 【17】reset key 【18】support CAN or CAN FD 【19】WIFI/BT antenna 【20】WIFI/BT module 【21】MIPI camera interface 【22】ADC expansion interface 【23】TF card slot 【24】FAN power supply interface 【25】MIPI camera interface 【26】M.2 solid state hard disk interface 【27】Debug serial port 【28】Uart10 【29】Uart1 【30】Uart4 【31】RS485 【32】RTC battery holder 【33】SIM Card holder |
Electrical | Operating temperature: -20℃- 80℃ Storage temperature: -30℃- 80℃ Storage humidity: 10%～80 % |
Other | OS: Android 14, Ubuntu, Linux, Debian Cutomize service: RK3576 system on module + carrier board customize + software developing + OEM/ODM |
Application | HD display advertising machines, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals and so on |
