| CPU | RK3288 ARM Cortex-A17 |
|---|---|
| Frequency | 1.8GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB eMMC |

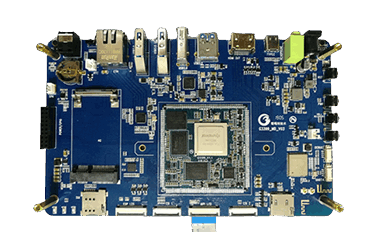

RK3288 stamp hole development board is a product platform based on RK3288 (quad core A17) chip of Rockchip launched by Graperain.

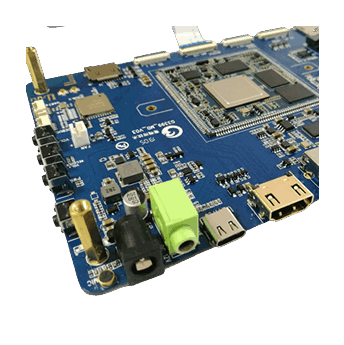

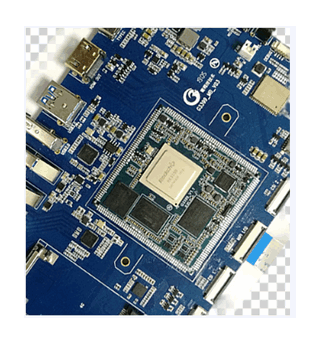

RK3288 development board is composed of RK3288 stamp hole system on module and carrier board.
RK3288 system on module adopts Rockchip RK3288 (A17 quad core) processor, an excellent domestic chip manufacturer, with the main frequency up to 1.8Hz. It integrates Mali-T760 MP4 graphics processor, supports OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL, and Directx11, and can achieve 4K x 2K H 264 and 10 bits H.265 video hard decoding.
RK3288 development board brings out almost all the functions of the chip, and the data transmission and scalability are given excellent play. On board 4G LTE expansion interface, OTG, USB2.0, gigabit network card, dual band WIFI, Bluetooth, audio and video input and output, multiple sensors, RGB, LVDS, MIPI, HDMI and other display and communication interfaces, cameras, TF cards and other rich peripheral resources.
It supports Android, Linux, and Ubuntu systems, and open source code to facilitate customer secondary development.
It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals, VR, etc., reducing the R&D threshold and accelerating the product R&D cycle.
Dimensions of RK3288 system on module: 55.8mm * 55.8mm Dimensions of RK3288 development board: 186mm * 115mm
Screen | Screen size: 7-inch capacitive touch screen (MIPI/RGB) Resolution: 1024 * 600 |
|---|---|
Parameters | Appearance: stamp hole Size: 55.8mm * 55.8mm * 3mm [industry minimum] Pin pitch: 1.1mm Number of pins: 180 PIN, meeting various expansion requirements of users [the largest number of outgoing pins] Process: 8-layer gilding process design, PCB made by Taiwan funded large factory [exclusive support] CPU: RK3288, quad core Cortex-A17, 1.8GHz, considered as the most promising ARM processor in recent years Memory: 2GB standard configuration, 4GB customizable [2GB standard configuration, 4GB customizable] Storage: 4GB/8GB/16GB/32GB emmc optional, 8GB standard configuration [8GB standard configuration, 4GB/16GB/32GB customizable] Power IC: ACT8846 [exclusive support] Graphics processor: Mali-T760 MP4, support OpenGL ES 1.1/2.0/3.0, Openvg1.1, OpenCL, Directx11 embedded high-performance 2D acceleration hardware, support 4K H.264 and 10bits H.265 video codec, 1080P multi format video codec [exclusive support] |
| Hardware Interface |

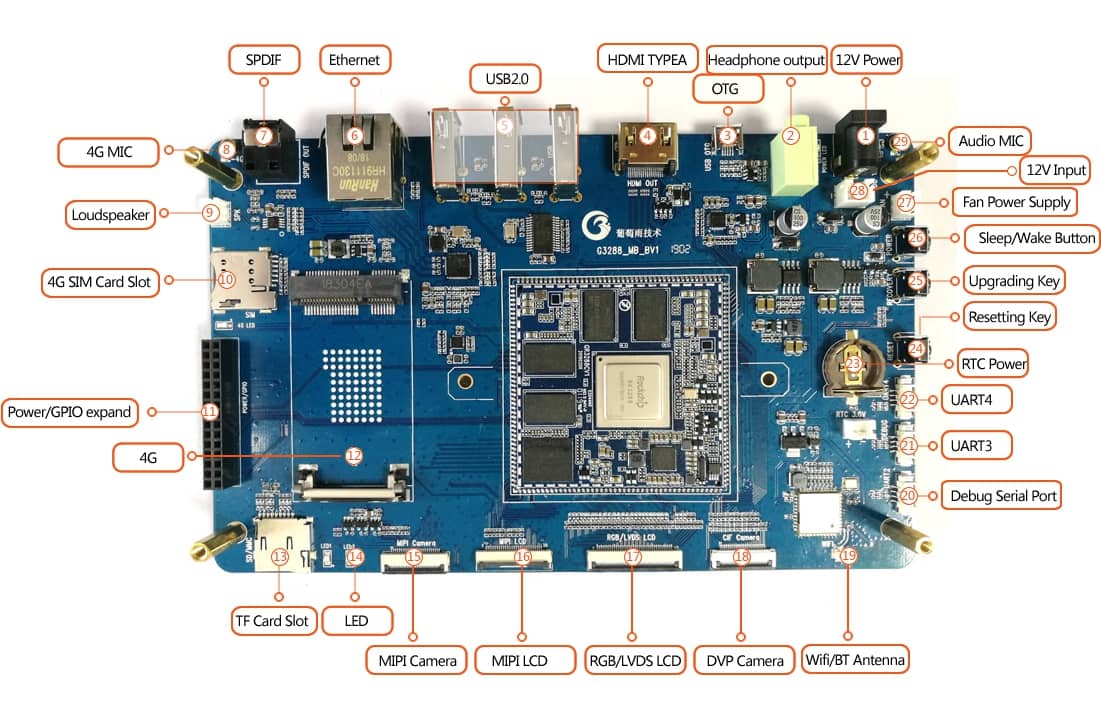

【1】 12V power supply: 12V power supply input 【2】 Headphone output: headphone output of audio 【3】OTG：OTG Micro USB 【4】 HDMI TYPEA: HDMI TypeA output 【5】USB2.0*3 【6】 Gigabit network card: RJ45 【7】 SPDIF: SPDIF output 【8】 4G MIC: 4G communication recording port 【9】 Horn: horn output 【10】 4G SIM: 4G SIM card holder 【11】 Power/gpio expansion: POWER, GPIO expansion port 【12】4G：4G 【13】 TF card slot: TF card slot 【14】 LED: controllable led 【15】 MIPI Camera: MIPI Camera interface 【16】 MIPI lcd: MIPI lcd interface 【17】 RGB/LVDS LCD: RGB, LVDS LCD interface 【18】 DVP Camera: DVP Camera connector 【19】 Wifi/BT antenna: Wifi, BT antenna 【20】 Debugging serial port: debugging serial port 【21】UART3：UART3 【22】UART4：UART4 【23】 RTC power supply: RTC power supply interface 【24】Reset key: reset key 【25】 Upgrade key: Upgrade key 【26】 Sleep/Wake key: Sleep/Wake key 【27】Fan power supply: fan power supply 【28】 12V input: 12V input interface seat 【29】Audio MIC: audio recording port |
Other | System support: Android 5.1, Linux+qt, Ubuntu14.04 and other systems Our service: RK3288 system on module+ carrier board customization+software development+OEM/ODM |
Application | It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle mounted control terminals, etc., reducing the R&D threshold and accelerating the product R&D cycle. |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Rockchip RK3288 Development Board |
|
|
RK3288 stamp hole development board is a product platform based on RK3288 (quad core A17) chip of Rockchip launched by Graperain.
RK3288 Development Board

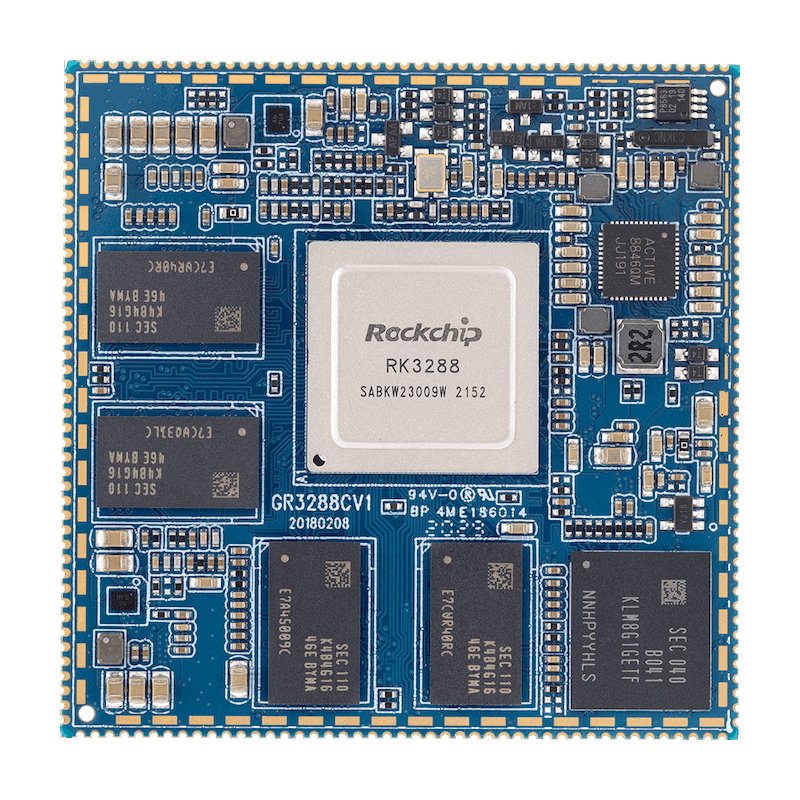

RK3288 system on module is a product platform based on RK3288 (A17 quad-core) chip launched by Graperain.
RK3288 System on Module
