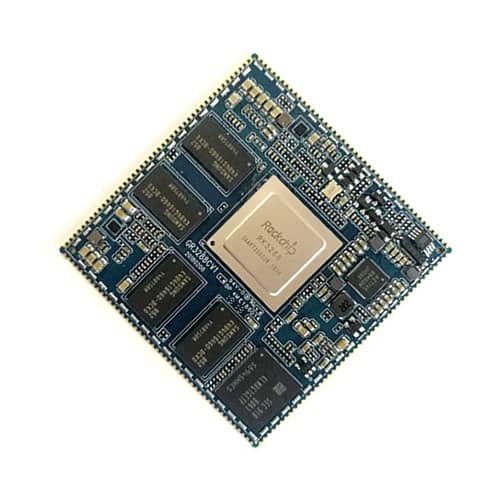

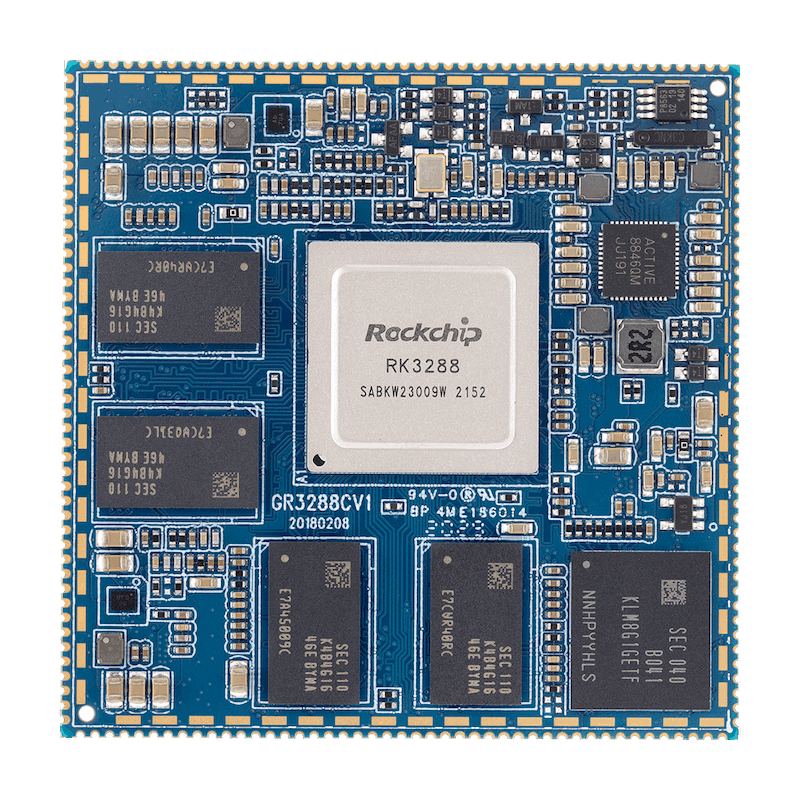

Rockchip RK3288 System on Module

CPU RK3288 ARM Cortex-A17
Frequency 1.8GHz*4
RAM 2GB DDR3/4GB DDR3 optional
EMMC 4GB/8GB/16GB/32GB eMMC
Consult Now
  • Overview
  • Hardware
  • Software
  • Download
  • FAQ

RK3288 system on module is a product platform based on RK3288 (A17 quad-core) chip launched by Graperain.

RK3288 development platform adopts the RK3288 (A17 quad-core) processor from Rockchip, an excellent domestic chip manufacturer, with a main frequency of up to 1.8Hz, an integrated Mali-T760 MP4 graphics processor, and supports OpenGL ES1.1/2.0/3.0, OpenVG1 .1, OpenCL, Directx11, can achieve 4K x 2K H.264 and 10 bits H.265 video hard decoding, and the AnTuTu running score exceeds 50,000 points.

In addition to the powerful RK3288, RK3288 development board is also equipped with 2GB/4GB DDR3, 8GB/16GB/32GB eMMC high-speed memory, independent power management system, powerful network expansion capabilities, rich display interfaces, and supports Android5.1. Linux, Ubuntu three operating systems, performance and experience to the extreme.

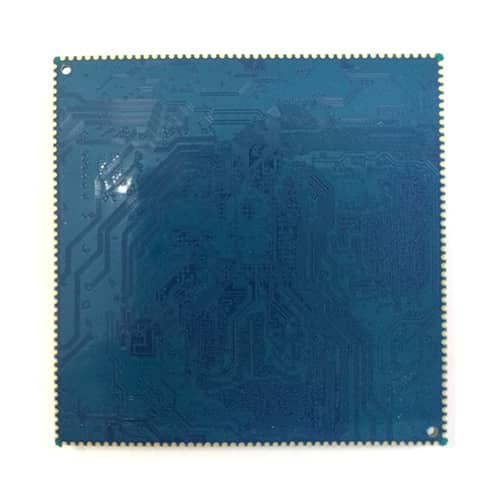

The RK3288 development platform adopts RK3288 system on module + carrier board design with stamp holes. The module has strong scalability, up to 180PIN pins, and the running speed is up to 1.8GHz. The PCB is designed with 8-layer immersion gold process, which has the best electrical characteristics and anti-interference characteristics, and works stably and reliably.

Structural
 parameters

1、Appearance: Stamp hole method

2、Size: 55.8mm*55.8mm*3mm

3、Pin pitch: 1.1mm

4、Number of pins: 180 PIN, to meet various expansion needs of users [the most pins are pinned out]

5、Process: 8-layer immersion gold process design, PCB production by Taiwan-funded manufacturers [exclusive support]

System
 Configuration

CPU: RK3288, quad-core Cortex-A17, clocked at 1.8GHz, considered to be the most promising ARM processor in recent years

Memory: Using dual-channel DDR3 design, standard 2GB, customizable 4GB [standard 2GB, customizable 4GB]

Storage: 4GB/8GB/16GB/32GB emmc optional, standard 8GB [standard 8GB, customizable 4GB/16GB]

Power IC: ACT8846 [Exclusive Support]

Graphics processor: Mali-T760 MP4, supports OpenGL ES 1.1/2.0/3.0, Openvg1.1, OpenCL, Directx11 embedded high-performance 2D acceleration hardware supports 4K H.264 and 10bits H.265 video decoding, 1080P multi-format video decoding [Exclusive Support]

Ethernet: Use RTL8211E Gigabit Ethernet PHY [Exclusive Support]

Interface
 Parameters

LCD interface: support LVDS, MIPI interface output [exclusive support]

Touch interface: capacitive touch, can use USB or serial port to expand resistive touch

Audio interface: AC97/IIS/PCM interface, support recording and playback

SD card interface: 2 SDIO output channels

Semmc interface: onboard emmc interface, the pins are not led out separately

Ethernet interface: support Gigabit Ethernet

USB HOST interface: 2-way HOST2.0, [Support]

USB OTG interface: 1 channel OTG2.0

UART interface: 5 serial ports, support serial port with flow control

PWM interface: 2 PWM outputs

IIC interface: 5-way IIC output

SPI interface: 1 SPI output

ADC interface: 1 channel ADC output

Camera interface: 1 channel BT656/BT601, 1 channel MIPI output [exclusive support]

HDMI interface: HDMI2.0, high-definition audio and video output, audio and video synchronization output [exclusive support]

Electrical
 Characteristics

Input voltage: 4.2V--5V

Output voltage: 3.3/5V

Storage temperature: -30~80 degrees [exclusive support]

Working temperature: -20~70 degrees

Other

System support: support android11, linux, ubuntu, debian operating system

SServices we provide: 3288 stamp hole core board module + hardware customization + software development + OEM/ODM

Application

Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc.

Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc.
