| CPU | RK PX30 ARM Cortex-A35 |
|---|---|
| Frequency | 1.3GHz*4 |
| RAM | 1GB 0DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB eMMC |
RK PX30 development board base on Rockchip PX30 (A35 quad-core) chip launched by Graperain.
RK PX30 development board adopts the PX30 (A35 quad-core) processor of the domestic excellent chip manufacturer Rockchip, with a main frequency of up to 1.3Hz, integrated Mali-G31 graphics processor, and supports OpenGL ES3.2, Vulkan 1.0, OpenCL2.0 , capable of hard decoding 1080p 60fps H.264 and H.265 video.
In addition to the powerful PX30, the GR30 development platform is also equipped with 1GB/2GB DDR3, 8GB/16GB/32GB eMMC high-speed memory, independent power management system, powerful network expansion capabilities, rich display interfaces, and supports Android8.1., Linux, Ubuntu three operating systems, performance and experience to the extreme.

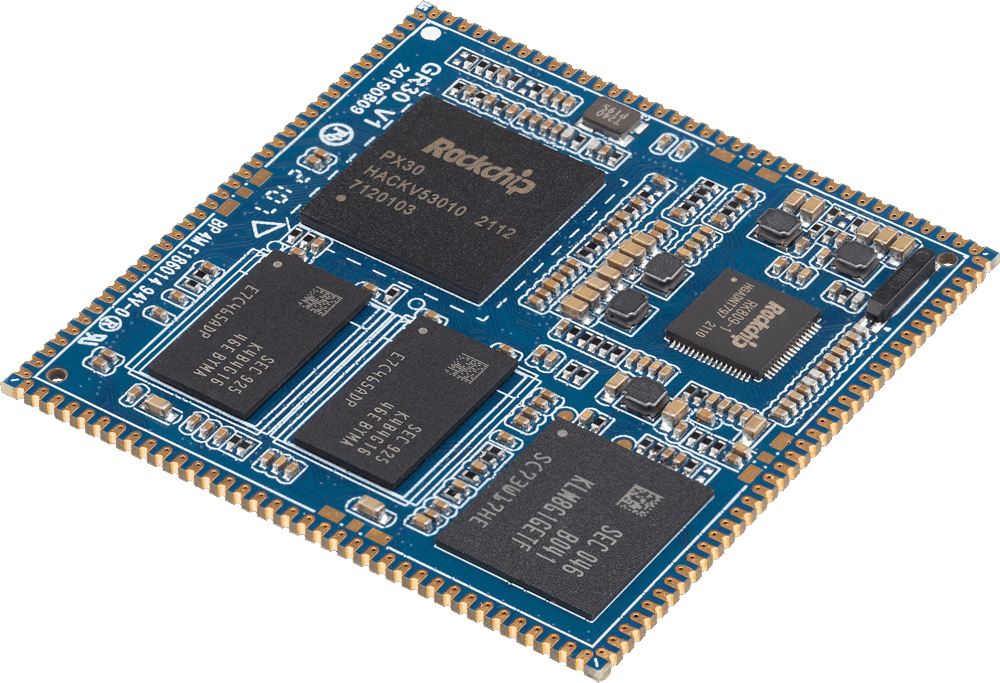

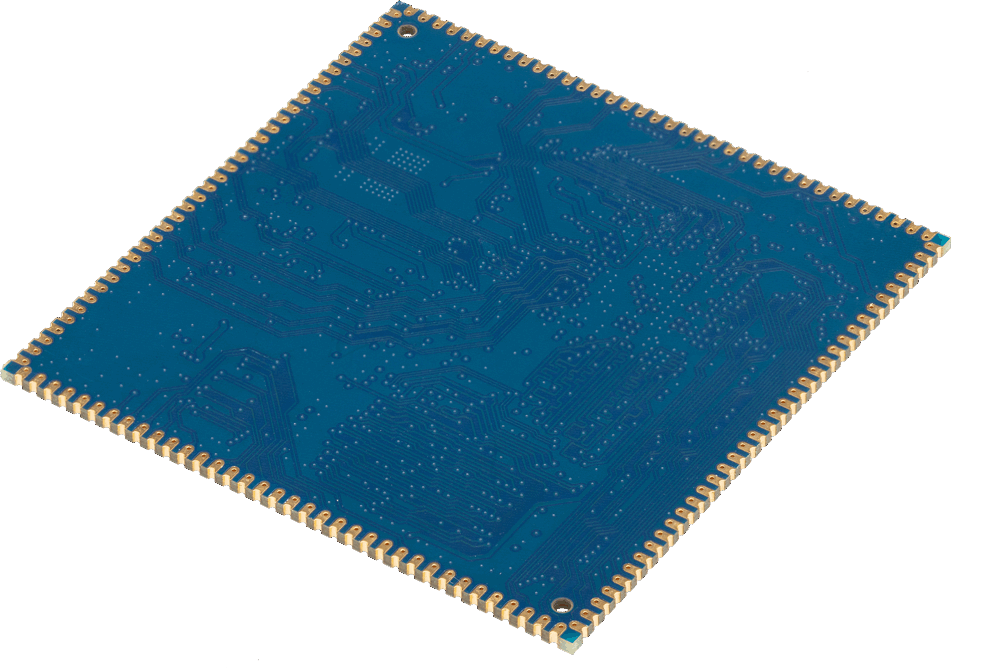

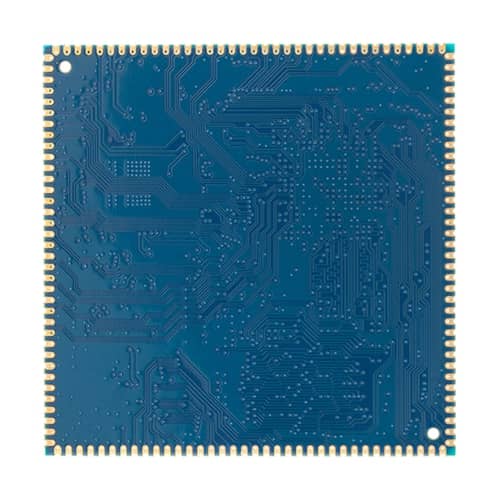

RK PX30 development board adopts PX30 system on moduel + carrier board design with stamp holes. The module has strong scalability, up to 144 PIN pins, and the running speed is up to 1.3GHz. The PCB is designed with 8-layer immersion gold process, which has the best electrical characteristics and anti-interference characteristics, and works stably and reliably.
Structural | 1、Appearance: Stamp hole 2、Size: 45mm*45mm*3mm 3、Pin pitch: 1.2mm 4、Number of pins: 144 PINs, to meet various expansion needs of users [the most pins] 5、Process: 8-layer immersion gold process design, PCB production by Taiwan-funded manufacturers [exclusive support] |
|---|---|
System | CPU：RK PX30, cortex A35 quad core 1.3 GHz Memory: DDR3 design, standard 1GB, customizable 2GB [standard 1GB, customizable 2GB] Storage: 4GB/8GB/16GB/32GB emmc optional, standard 8GB [standard 8GB, customizable 32GB/16GB] Power IC: RK809; [Exclusive Support] Graphics Processor: Mali-G31, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, to come out 1080p 60fps H.264 and H.265 video hard decoding |
| Interface Parameters | Display: RGB, LVDS, MIPI interface output Touch: Capacitive touch, and USB or serial port expansion resistive touch Audio: AC97/IIS interface, supports record and play SD: Single SDIO output channel EMMC: eMMC onboard, no other pin out Ethernet: 100M Ethernet USB HOST: Double channels HOST2.0 USB OTG: Single OTG 2.0 UART: Six channels, support serial port with flow control PWM: Eight channels IIC: Four channels IIC output SPI: Double channels output ADC: Three channels output Camera: Single MIPI CSI input |
Electrical | Input voltage: 4.2V--5V Output voltage: 1.8V/3V/3.3V/5V Storage temperature: -30~80 degrees [exclusive support] Working temperature: -20~70 degrees |
Other | System support: support android11, linux, ubuntu, debian operating system Services we provide: PX30 system on module + carrier board customization + software development + OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
|
