CPU	RK3566 ARM Cortex-A55
Frequency	1.8GHz*4
RAM	2GB DDR3/4GB DDR3 optional
EMMC	8GB/16GB/32GB eMMC optional

Rockchip RK3566 System-on-Module for OEM & Embedded Integration

Key Features of RK3566 SOM

Quad-Core Cortex-A55 CPU & Mali-G52 GPU

The RK3566 SOM integrates a quad-core Cortex-A55 CPU and Mali-G52 GPU, providing reliable performance for embedded solutions, industrial automation, and AIoT devices.

Modular Interfaces for OEM Integration

Supports PCIe, USB 3.0, MIPI-DSI/CSI, UART, SPI, I2C, GPIO, and Gigabit Ethernet, allowing integration into custom baseboards or existing hardware platforms.

Industrial-Grade Reliability

Operates across wide temperature ranges, ensuring stable long-term performance for industrial deployments.

Applications of RK3566 SOM

OEM Embedded Systems

Designed for integration into custom industrial controllers, AIoT gateways, or automation systems.

Industrial Automation

Suitable for factory automation, process control, and robotics applications.

AIoT Devices

Supports edge AI processing and intelligent IoT devices with modular hardware requirements.

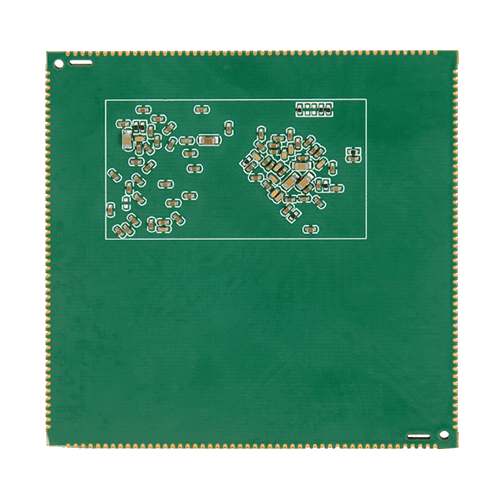

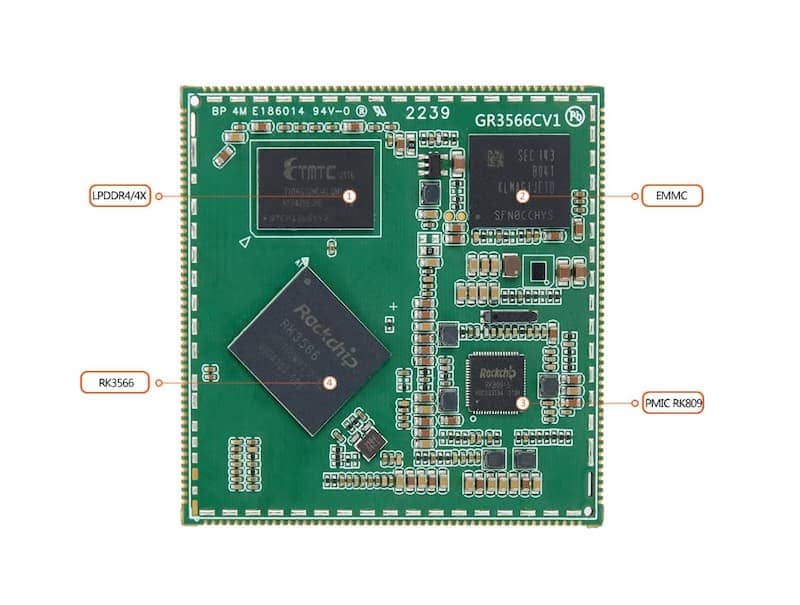

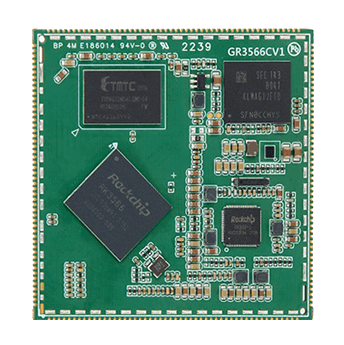

RK3566 System on Module top view

Frequently Asked Questions about RK3566 SOM

1. Can the RK3566 SOM be customized for specific applications?

Yes, hardware and software customization is available to meet OEM or industrial integration requirements.

2. Is the RK3566 SOM suitable for long-term industrial deployment?

Yes, it supports wide temperature ranges and long-term stable operation for industrial environments.

3. How can the SOM be integrated into custom hardware?

It can be connected via standard interfaces (PCIe, USB, UART, GPIO) to your own baseboard or embedded system.

Structural parameters	Apperance: Stamp hole Size: 55.0mm x 55.0mm Pin distance: 1mm Pin Number: 200PIN Layer: 8-layer
System Configuration	CPU: RK3566, cortex A55 quad-core 1.8GHz GPU: ARM G52 2EE GPU, support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, and inbuilt 2D hardware acceleration NPU: Integrated RKNN NPU A1 accelerator, 1Top NPU,such as: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet CODEC: 4K 60fps H.265/H.264/VP9 vedio decode, and 1080P 100fps H.265，60fps H.264 video encode RAM: 2GB/4GB/8GB lpddr4/4x, 2GB as standard version EMMC: 8GB/16GB/32GB/64GB/128GB eMMC optional, 16GB as standard version Support PCIe2.1 和 SATA3.0, and SSD/HDD as extensiable Aslo UART, I2C, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, EDP, MIPI CSI, MIPI DSI, I2S extensiable port
Interface Parameters	Ethernet: Integrated GMAC Ethernet control machine, and 1000Mbps Ethernet ( RJ45 ) Wifi: 2.4GHz / 5GHz dual channels Wifi, 2.4GHz / 5GHz, It could be extend Wifi+blue two-in-one module by SDIO interface. And Bluetooth 4.2, extend 4G LTE/3Gwireless network Display: 1 x HDMI2.0, max 4K@60Hz 2 x MIPI DSI, single channel 1920x1080@60fps, dual channels 2560x1440@60fps 1 x EDP1.3, max 2560x1600@60fps Audio: 1 x I2S ( eight channels input/output ), 2 x I2S ( two channels input/output ) Camera: 1x MIPI-CSI ( single channel 4LAN, or dual channels 2 LAN ) Ethernet: 1 x gigabit Ethernet port USB: 2x USB 2.0, 1x USB3.0 PCIE: PCIE 2.1 SATA: SATA3.0 Others: 10 x UART, 5 x I2C, 2 x ADC, 16 x PWM, 107 x GPIO, 3 x I2S, 1 x SPEAK, 1 x HPOUT
Electrical Characteristics	Working temperature: -20℃- 80℃ Stroge temperature:-30℃- 80℃ Stroge humidity: 10%～80 %
Other	OS: Android 12, Linux, Ubuntu, Debian OS Customize service: RK3566 stamp hole system on module + carrier board customize+ software developing+ OEM/ODM
Application	HD display advertising machines, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals and so on Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc.

Software Support for RK3566 System-on-Module

The RK3566 System-on-Module is backed by a comprehensive software ecosystem designed to accelerate development and deployment. It supports multiple operating systems, including Android 12, Ubuntu 20.04, Debian 11, and Buildroot. Our robust BSP (Board Support Package) ensures optimized performance and long-term support for industrial applications.

✔ Android 12 SDK with HAL and source code access
✔ Linux BSP for Ubuntu/Debian with full driver support
✔ Buildroot image for lightweight, headless systems
✔ Kernel patch support
✔ Customization services for bootloader, file system

Product name	Type	Size（KB）	Download the latest version
Rockchip RK3566 System on Module			Rockchip RK3566 System on Module

QCan the RK3566 SOM be customized for specific project needs?

A Yes, we offer hardware customization based on the RK3566 SOM, including carrier board design, I/O adjustments, display tuning, and BSP modification to fit your exact application scenario.

QIs there documentation and SDK support for the RK3566 SOM?

A Yes, Embsom provides full documentation including schematics, datasheets, user guides, and SDK packages for both Android and Linux, ensuring smooth development and integration with the RK3566 SOM.

QWhat storage methods are supported on the RK3566 SOM?

A The RK3566 SOM supports eMMC, and SD card boot. Optional interfaces like SATA and NVMe SSDs via PCIe make it flexible for different storage demands.

QWhat are the display options available for RK3566 SOM?

A The RK3566 SOM supports multiple display technologies including HDMI 2.0 (up to 4K), MIPI-DSI, LVDS, and eDP, ensuring compatibility with modern display panels in diverse embedded projects.

QWhat is the typical use case for the RK3566 SOM?

A The RK3566 SOM is well-suited for embedded solutions such as edge computing gateways, industrial HMI panels, AI-enabled surveillance devices, and IoT control units that require high reliability and compact size.

QWhat types of interfaces does the RK3566 SOM offer?

A The RK3566 SOM provides a broad range of I/O interfaces including Gigabit Ethernet, PCIe, USB 3.0, MIPI-DSI/CSI, LVDS, I2C, UART, and GPIO, offering excellent expandability for embedded designs.

QDoes the RK3566 SOM include AI processing capabilities?

A Yes, the RK3566 SOM integrates a 1 TOPS NPU, enabling it to efficiently perform edge AI tasks like object classification, people detection, and facial recognition—ideal for smart vision and AIoT systems.

QWhich operating systems are supported by the RK3566 SOM?

A The RK3566 System on Module supports multiple operating systems including Android 12, Debian/Ubuntu Linux, and Buildroot. We provide complete BSPs and documentation to help accelerate custom application development on this platform.

QWhat is the Rockchip RV1126B System on Module?

A It is a production-ready embedded module based on the Rockchip RV1126B platform, integrating CPU, NPU, memory, storage, and I/O for fast product development.

QCan the RK3566 SBC be customized for specific applications?

A Yes, we offer customization for the RK3566 SBC including board layout adjustments, peripheral configuration, OS optimization, and enclosure design to meet specific project needs.

Rockchip RK3566 System on Module
