| CPU | RK PX30 ARM Cortex-A35 |
|---|---|
| Frequency | 1.3GHz*4 |
| RAM | 1GB 0DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB eMMC |
RK PX30 development board is a product platform based on the PX30 (64 bit quad core A35) chip of Rockchip launched by Graperain.
RK PX30 development board is mainly composed of PX30 system on module and base plate.

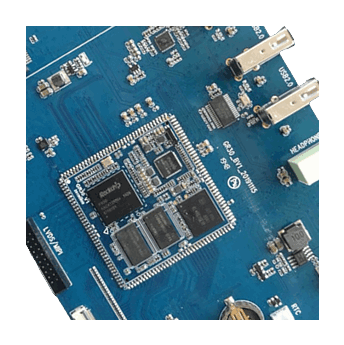

RK PX30 system on module adopts Rockchip PX30 (A35 quad core 64 bit) processor from the domestic excellent chip manufacturer Rockchip, with the main frequency up to 1.3Hz, integrated Mali-G31 graphics processor, supports OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, and can realize 1080p 60fps H.264 and H 265 video hard decoding. It is equipped with 1GB/2GB DDR3, 8GB/16GB/32GB eMMC high-speed memory with powerful functions.
The carrier board of PX30 development board brings out almost all the functions of the chip, and the data transmission and scalability have been given excellent play. On board 4G LTE expansion interface, OTG, USB2.0, 100M network card, WIFI, Bluetooth, audio and video input/output, G-Sensor, RGB, LVDS, MIPI and other display and communication interfaces, MIPI camera, TF card, extended GPIO and other rich peripheral resources.
Support Android, Linux, Debian and other systems, and open source code to facilitate secondary development of customers.
It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle mounted control terminals, etc., reducing the R&D threshold and accelerating the product R&D cycle.
Dimensions of PX30 system on module: 45mm * 45mm Dimensions of PX30 development board: 186.5mm * 115.6mm
Structural | 1、 Appearance: PX30 system on module+carrier board 2、Size: 186.5mm * 115.6mm 3、Board layer: 8 layers of G30 system on module/4 layers of carrier board |
|---|---|
System | 1、 Appearance: PX30 system on module+carrier board CPU：Rockchip PX30 Primary frequency: Cortex A35 quad core 1.3GHz Memory: 1GB standard configuration, 2GB customizable EMMC: 4GB/8GB/16GB/32GB emmc optional, 8GB standard Power IC: RK809, ensuring stable and reliable operation; Graphics processor: Mali-G31, supports OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, and can realize 1080p 60fps H.264 and H 265 video hard decoding. [ Exclusive Support] |
| Interface Parameters | Display interface: support RGB, LVDS and MIPI interfaces Touch interface: capacitive touch, can use USB or serial port to expand resistance contact Touch audio interface: AC97/IIS interface, supporting recording and playback SD card interface: one SDIO output channel; Emmc interface: onboard emmc interface, pins are not led out separately Ethernet interface: support 100M Ethernet USB HOST interface: 3-way HOST2.0 USB OTG interface: 1-way OTG2.0 interface UART interface: 2-way serial port, supporting flow control serial port PWM interface: 2-channel PWM output IIC interface: 4-way IIC output SPI interface: 1 channel SPI output ADC interface: 2-way ADC Camera interface: 1-way MIPI CSI MIPI interface: 1-way MIPI TX (multiplexed with LVDS) LVDS interface: 1-way lvds (multiplexed with MIPI TX) |
Hardware |

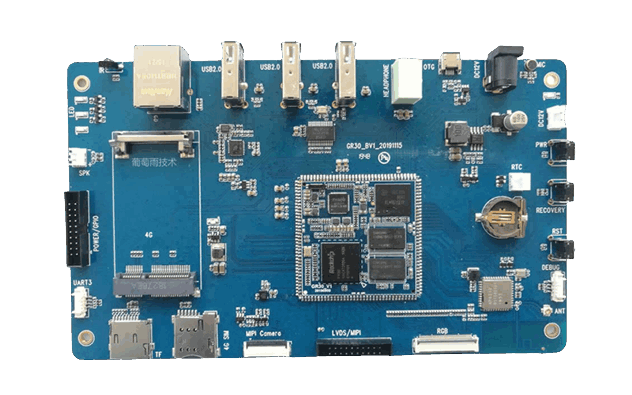

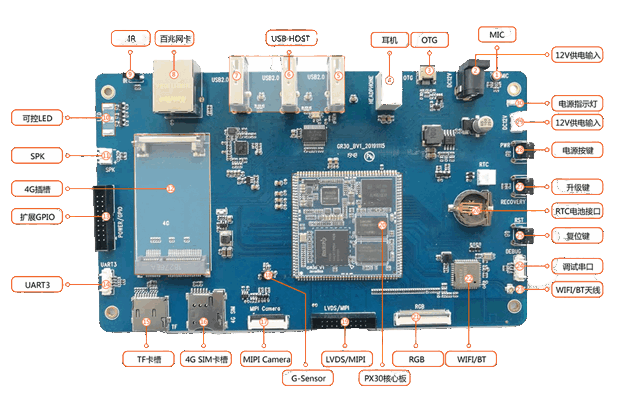

【1】 MIC: audio input 【2】 12V power supply input: 12V power supply input 【3】OTG：OTG Micro USB 【4】 Headphones: audio headphone output 【5】USB2.0*3 【6】100M network card: RJ45 interface 【7】 IR: infrared reception 【8】 Controllable LED: Gpio controls the on and off of led lights 【9】 SPK: Audio speaker output 【10】 4G slot: support PCIE 4G module 【11】 Extended GPIO: POWER, GPIO expansion port 【12】 UART3: Uart3, ttl level 【13】 TF card slot: TF card slot 【14】 4G SIM card slot: 4G sim card slot 【15】 MIPI Camera: MIPI Camera interface 【16】 G-Sensor: Gravity sensor 【17】 LVDS/MIPI: LVDS/MIPI lcd interface 【18】 PX30 core board: PX30 core board GR30 【19】RGB: RGB LCD interface 【20】 WIFI/BT: WIFI/BT module AP6212 【21】 Wifi/BT antenna: Wifi, BT antenna, including onboard and button type 【22】Debugging serial port: debugging serial port 【23】 Reset key: reset key 【24】 RTC battery interface: RTC battery interface 【25】 Upgrade key: Upgrade key 【26】 Power key: power key 【27】 12V power supply input: 12V power supply input, 2pin 【28】 Power indicator: power indicator |
Electrical | Input voltage: 12V/2A Output voltage: 12V/5V/3.3V Storage temperature: - 30~80 ℃ Operating temperature: - 20~70 ℃ |
Other | System Support: Android 8.1, Linux, Debian and other systems Our service: PX30 system on module+carrier board customization+software development+OEM/ODM |
Application | It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle mounted control terminals, etc., reducing the R&D threshold and accelerating the product R&D cycle. |
|
