CPU	RK3399 ARM Cortex-A72+Cortex-A53
Frequency	2.0GHz2+1.4GHz4
RAM	2GB DDR3/4GB DDR3 optional
EMMC	4GB/8GB/16GB/32GB emmc optional, standard 8GB

Rockchip RK3399 System on Module

The Rockchip RK3399 System on Module (SoM) integrates a powerful hexa-core 64-bit processor (Dual Cortex-A72 + Quad Cortex-A53) with a Mali-T860 GPU, supporting Linux and Android operating systems. It is designed for AI, industrial IoT, edge computing, and multimedia applications.

Key Features

Hexa-core CPU architecture with high performance and efficiency
Mali-T860 MP4 GPU supporting advanced graphics
Up to 4GB LPDDR4 RAM
Multiple storage options including eMMC and SD card
Wide OS support: Linux, Android

Applications

Artificial Intelligence (AI) and Machine Learning
Industrial Automation and Control
Edge Computing Devices
Multimedia and Smart Devices

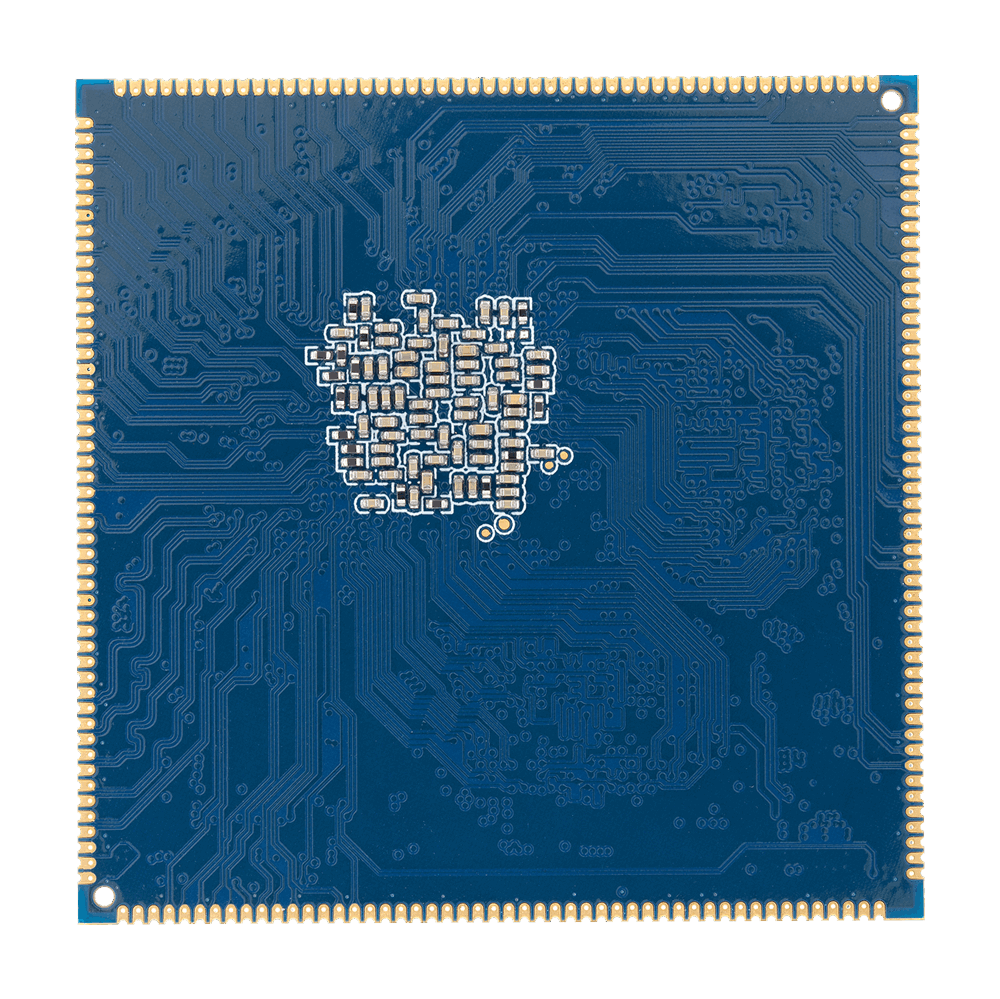

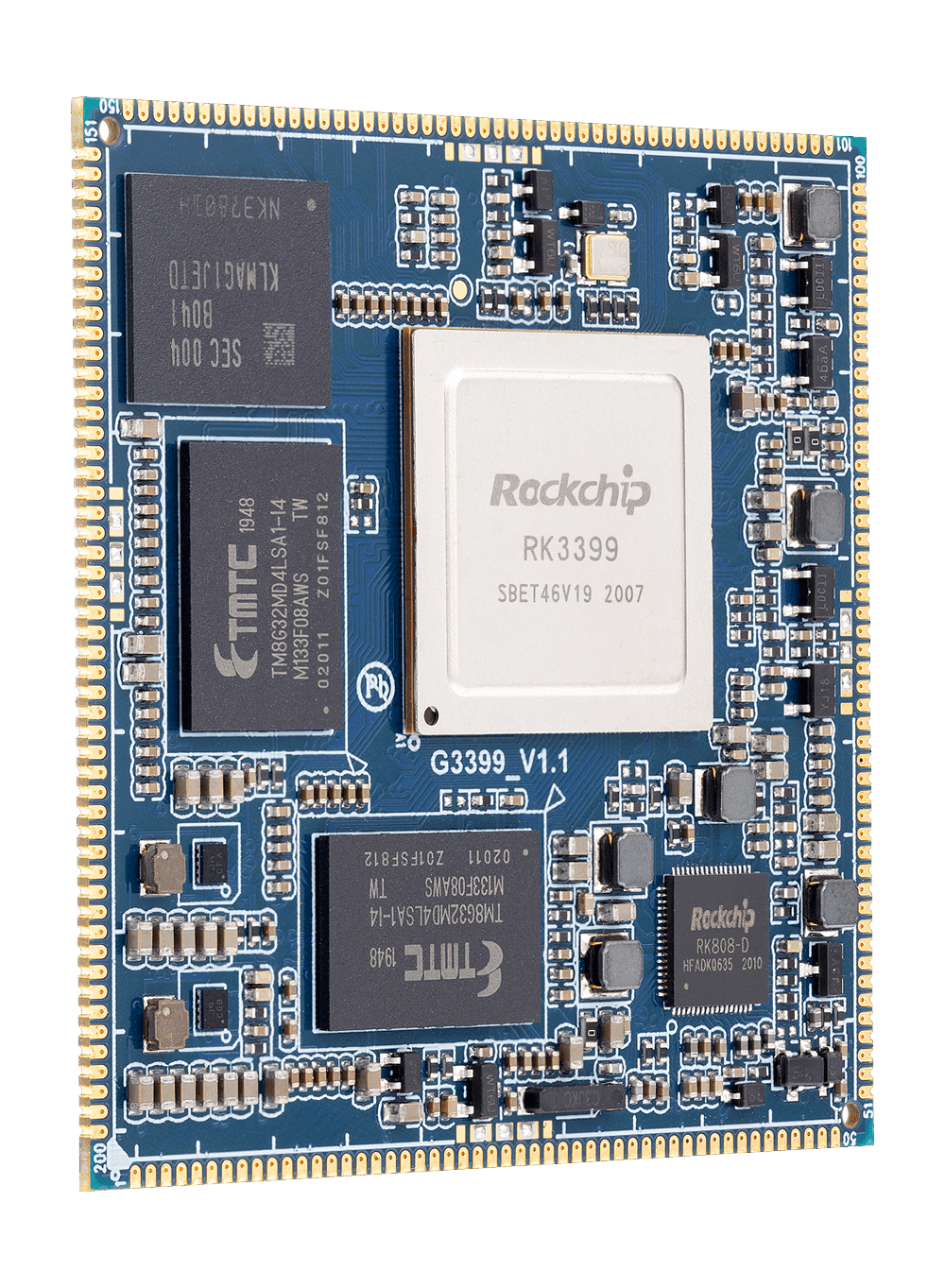

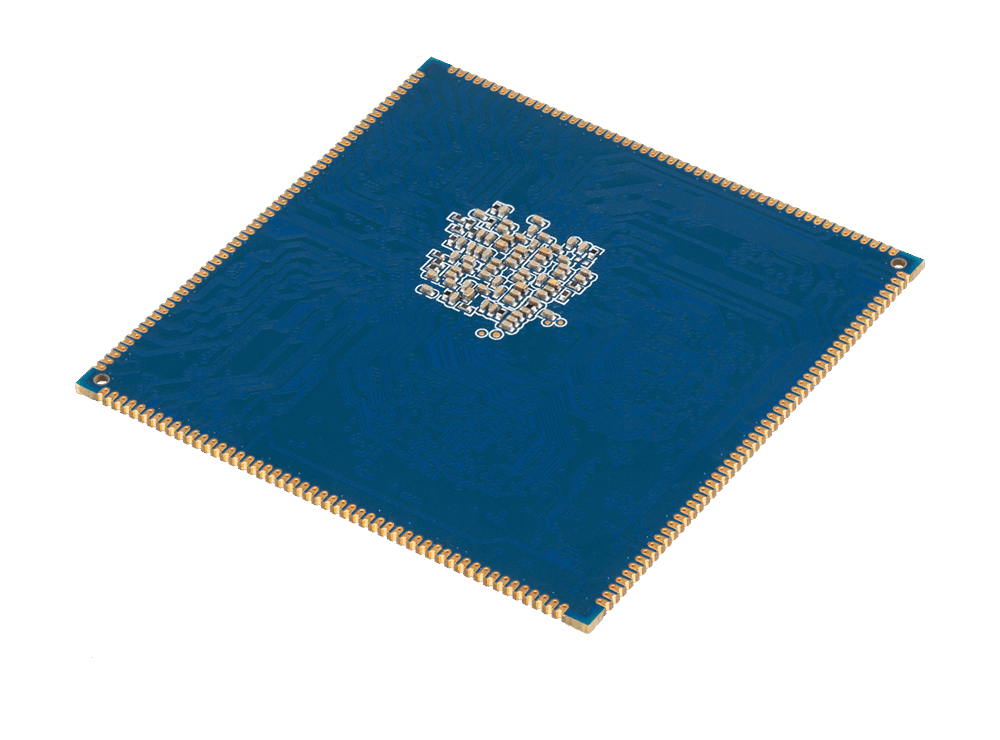

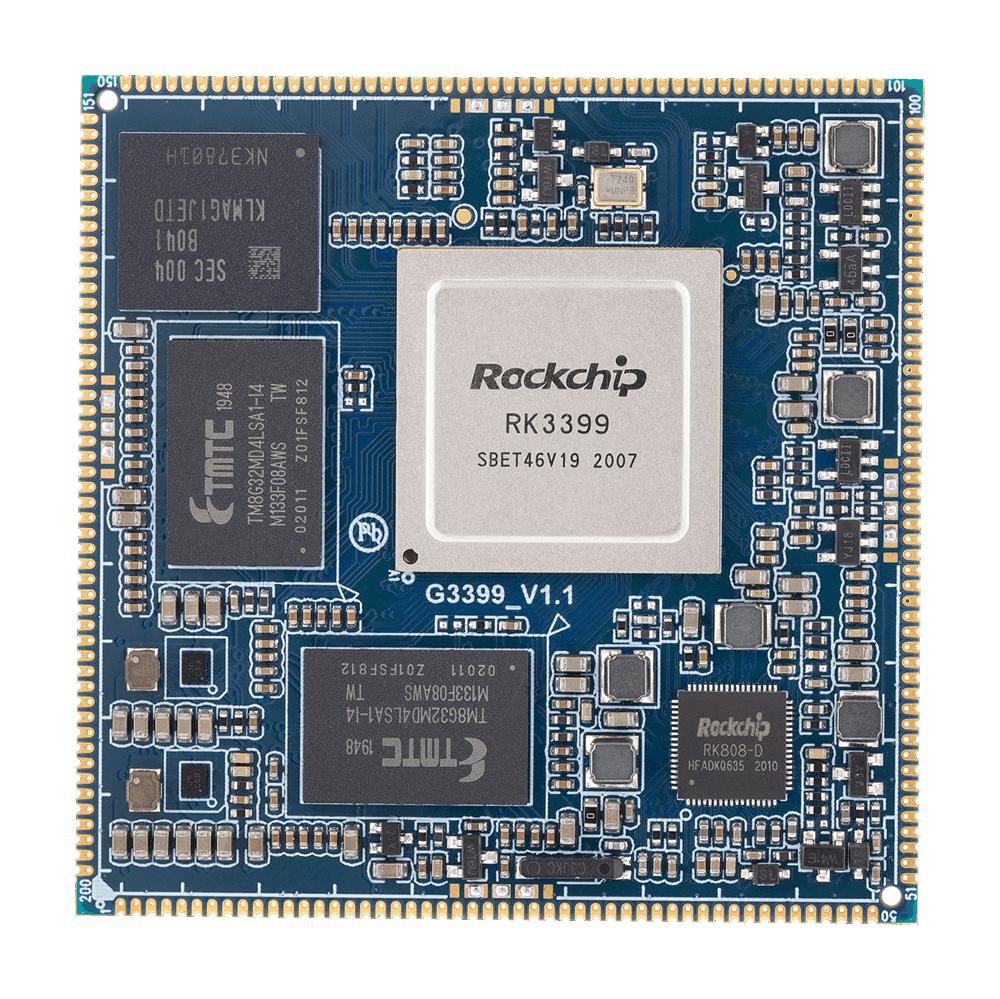

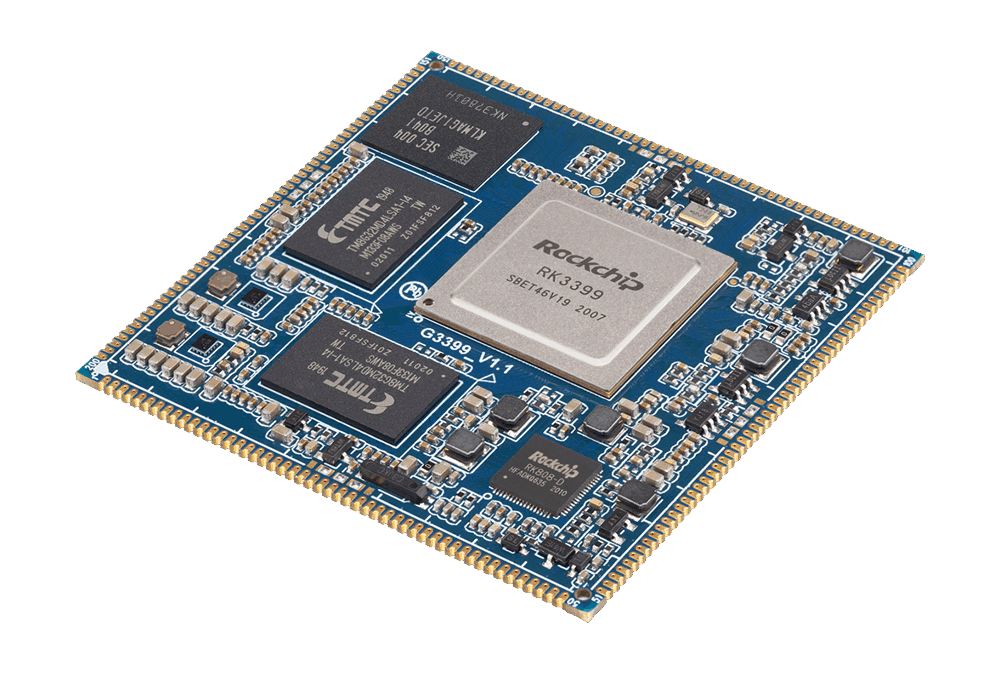

Front view of Rockchip RK3399 System on Module Bottom view of Rockchip RK3399 System on Module

Structural parameters	1. Appearance: Stamp hole 2. Size: 55mm55mm3mm 3. Pin pitch: 1.1mm 4. Number of pins: 200 PINs, to meet various expansion needs of users 5. Process: 8-layer immersion gold process design, PCB production by Taiwan-funded manufacturers
System Configuration	CPU: RK3399, Cortex A53 quad-core 1.4GHz + A72 dual-core 2GHz, considered to be the most promising ARM processor in recent years Memory: Using LPDDR4 design, standard 2GB, customizable 4GB [standard 2GB, customizable 4GB] Storage: 4GB/8GB/16GB/32GB emmc optional, standard 8GB [standard 8GB, customizable 4GB/16GB] Power IC: RK808, support dynamic frequency modulation Graphics processor: Mali-T860 MP4, quad-core GPU, support OpenGL ES 1.1/2.0/3.0/3.1, Openvg1.1, OpenCL, Directx11, support 4K VP9 and 4K 10bits H265/H.264 video decoding, up to 60 fps ,1080P multi-format video decoding 1080P video decoding, support H.264, VP8 format
Interface Parameters	Display interface: support MIPI interface, eDP output Ethernet: Using RTL8211E Gigabit Ethernet PHY Touch interface: capacitive touch, can use USB or serial port to expand resistive touch Audio interface: AC97/IIS/PCM interface, support recording and playback SD card interface: 2 SDIO output channels eMMC interface: onboard eMMC interface, the pins are not led out separately Ethernet interface: support Gigabit Ethernet USB HOST interface: 2 channels HOST2.0, 1 channel HOST3.O USB TYPEC interface: 1 channel UART interface: 5 serial ports, support serial port with flow control PWM interface: 2 PWM outputs IIC interface: 6 IIC outputs SPI interface: 1 SPI output ADC interface: 5 ADC outputs Camera interface: 2 MIPI inputs HDMI interface: high-definition audio and video output, audio and video synchronization output MIPI interface: 1 MIPI RX, 1 MIPI TX, 1 MIPI RX/TX eDP interface: support PCIE interface: support
Electrical Characteristics	Input voltage: 4.2V--5V Output voltage: 1.8V/3.3V Storage temperature: -30~80 degrees Working temperature: -20~70 degrees
Other	System support: android7.1, linux, debian and other systems Services we provide: RK3399 system on module + carrier board customization + software development + OEM/ODM
Application	Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc.

Product name	Type	Size（KB）	Download the latest version
Rockchip RK3399 System on Module			Rockchip RK3399 System on Module

QWhat is an RK3576 SOM (System on Module)?

A It is a production-ready module built around RK3576, integrating memory, storage, power, and I/O for rapid embedded product development.

QCan the RK3566 SOM be customized for specific project needs?

A Yes, we offer hardware customization based on the RK3566 SOM, including carrier board design, I/O adjustments, display tuning, and BSP modification to fit your exact application scenario.

QIs there documentation and SDK support for the RK3566 SOM?

A Yes, Embsom provides full documentation including schematics, datasheets, user guides, and SDK packages for both Android and Linux, ensuring smooth development and integration with the RK3566 SOM.

QWhat storage methods are supported on the RK3566 SOM?

A The RK3566 SOM supports eMMC, and SD card boot. Optional interfaces like SATA and NVMe SSDs via PCIe make it flexible for different storage demands.

QWhat are the display options available for RK3566 SOM?

A The RK3566 SOM supports multiple display technologies including HDMI 2.0 (up to 4K), MIPI-DSI, LVDS, and eDP, ensuring compatibility with modern display panels in diverse embedded projects.

QWhat is the typical use case for the RK3566 SOM?

A The RK3566 SOM is well-suited for embedded solutions such as edge computing gateways, industrial HMI panels, AI-enabled surveillance devices, and IoT control units that require high reliability and compact size.

QWhat types of interfaces does the RK3566 SOM offer?

A The RK3566 SOM provides a broad range of I/O interfaces including Gigabit Ethernet, PCIe, USB 3.0, MIPI-DSI/CSI, LVDS, I2C, UART, and GPIO, offering excellent expandability for embedded designs.

QDoes the RK3566 SOM include AI processing capabilities?

A Yes, the RK3566 SOM integrates a 1 TOPS NPU, enabling it to efficiently perform edge AI tasks like object classification, people detection, and facial recognition—ideal for smart vision and AIoT systems.

QWhich operating systems are supported by the RK3566 SOM?

A The RK3566 System on Module supports multiple operating systems including Android 12, Debian/Ubuntu Linux, and Buildroot. We provide complete BSPs and documentation to help accelerate custom application development on this platform.

QWhere can I get documentation and development support for the RK3568 SoM?

A Complete hardware manuals, schematics, SDKs, and software documentation are available on request. Engineering support is also available for integration and debugging.
