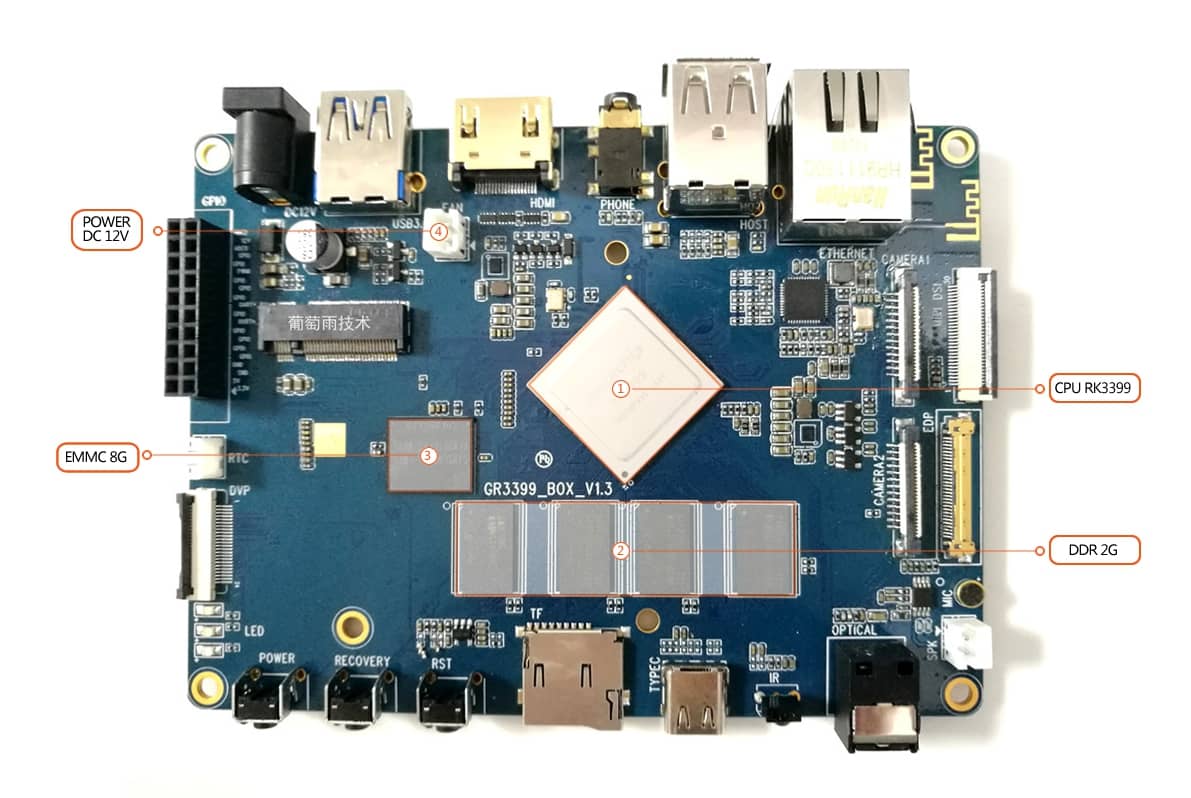

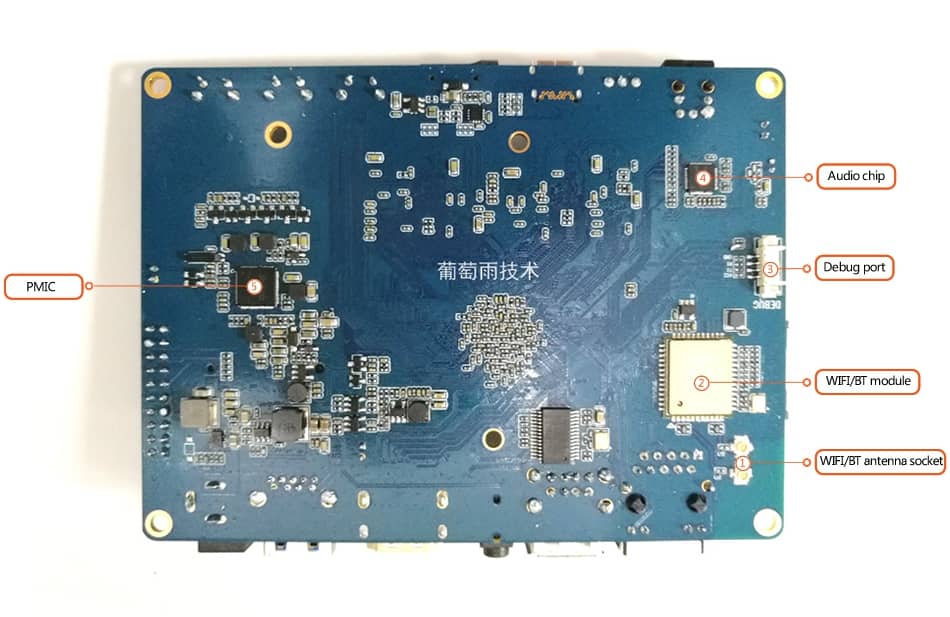

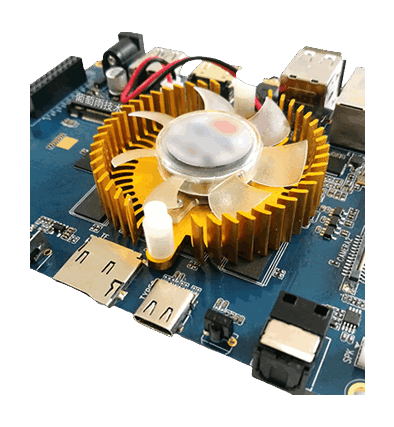

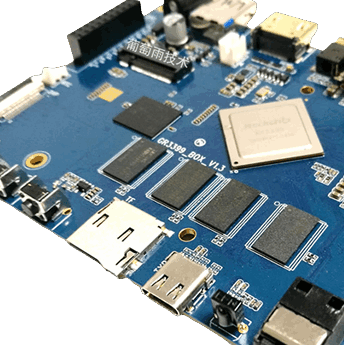

Rockchip RK3399 Single Board Computer

RK3399 single board computer is a product platform based on RK3399 (six core 64 bit) chip of Rockchip launched by Graperain. RK3399 single board computer adopts six core 64 bit "server level" processor RK3399 from Rockchip, an excellent chip manufacturer in China; The RK3399 chip uses a dual "server level" core Cortex-A72+quad core Cortex-A53 size architecture, with a dominant frequency of up to 2.0GHz. Compared with the previous A15/A17/A57 core design, the new core can provide up to 100% performance improvement.

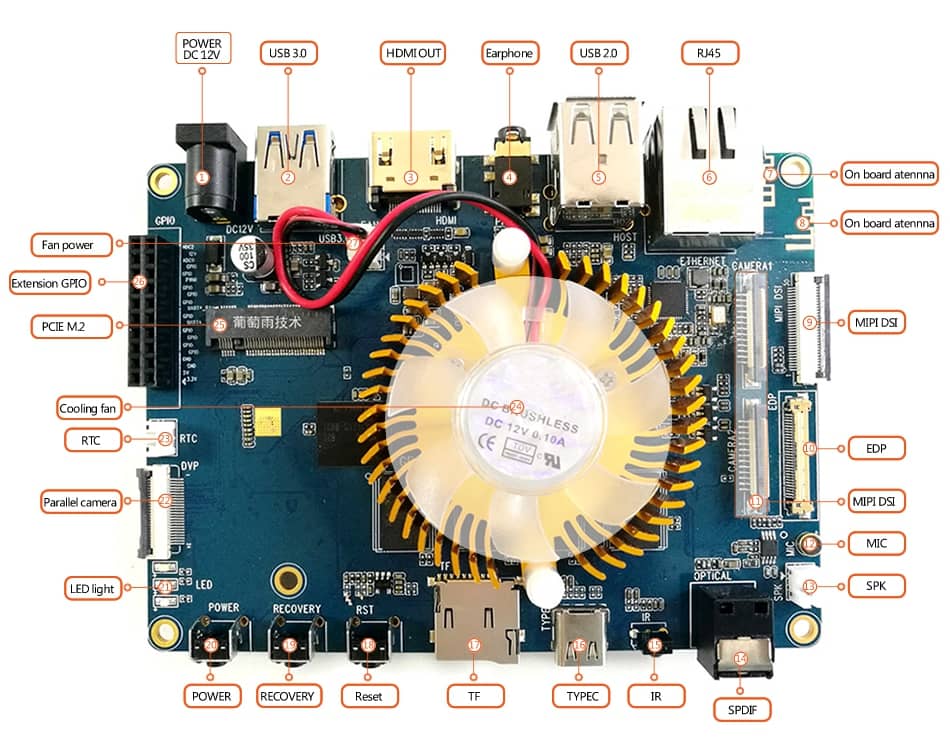

The integrated ARM Mali-T860 MP4 graphics processor supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, and AFBC (frame buffer compression). Such a powerful GPU can be applied to many practical applications such as computer vision, machine learning, 4K 3D rendering, and can support H 265 HEVC and VP9, H 265 encoding, 4K HDR. It has dual MIPI-CSI interfaces and dual ISP, PCIe, USB3.0, USB2.0, TypeC and other rich interfaces. In addition to the powerful RK3399, RK3399 single board computer is also equipped with 2GB/4GB DDR3, 8GB/16GB/32GB eMMC high-speed memory, independent power management system, strong network expansion capability, rich display interfaces, and support for Android 7.1, Linux, Debian and other operating systems. The performance and experience are maximized. RK3399 single board computer PCB is designed with 8-layer gold deposition process, which has the best electrical characteristics and anti-interference characteristics, and is stable and reliable. The size of 120mm * 88mm is only the size of two business cards. It is a good size and easy to use in various applications.
