| CPU | RK3399 ARM Cortex-A72+Cortex-A53 |
|---|---|
| Frequency | 2.0GHz*2+1.4GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB emmc optional, standard 8GB |

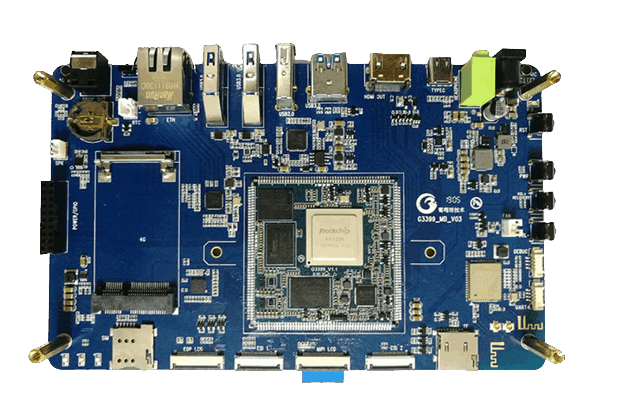

RK3399 development board is a product platform based on RK3399 (six core 64 bit) chip of Rockchip launched by Graperain.
RK3399 development board is mainly composed of RK3399 stamp hole system on module and base plate.

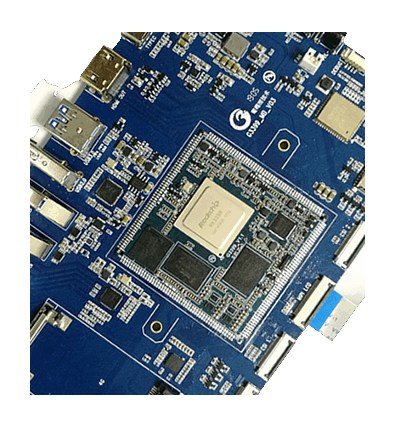

RK3399 system on module adopts six core 64 bit "server level" processor RK3399 from Rockchip, an excellent domestic chip manufacturer; The RK3399 uses a dual "server level" core Cortex-A72+quad core Cortex-A53 size architecture, with a dominant frequency of up to 2.0GHz. Compared with the previous A15/A17/A57 core design, the new core can provide up to 100% performance improvement.
The integrated ARM Mali-T860 MP4 graphics processor supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, Directx11, and AFBC (frame buffer compression). Such a powerful GPU can be applied to many practical applications such as computer vision, machine learning, 4K 3D rendering, and can support H 265 HEVC and VP9, H 265 encoding, 4K HDR.
It has dual MIPI-CSI interfaces and dual ISP, PCIe, USB3.0, USB2.0, TypeC and other rich interfaces.
In addition to the powerful RK3399, the RK3399 development board is also equipped with 2GB/4GB DDR, 8GB/16GB/32GB eMMC high-speed memory, independent power management system, strong network expansion capability, rich display interfaces, and support for Android 7.1, linux, ubuntu, debian and other operating systems. The performance and experience are maximized.
Support Android, Linux, Debian systems, and open source code to facilitate customer secondary development.
It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals, VR, etc., reducing the R&D threshold and accelerating the product R&D cycle.
Dimensions of RK3399 system on module: 55mm * 55mm Dimensions of RK3399 development board: 186.5mm * 115.6mm
Structural | Appearance: RK3399 stamp hole system on module +carrier board Size: 186.5mm * 115.6mm Board layer: 8 layers of RK3399 system on module /4 layers of carrier board |
|---|---|
System | CPU：Rockchip RK3399 Primary frequency: Cortex A53 quad core 1.4GHz+dual core A72 (2GHz) Memory: 2GB standard configuration, 4GB customizable Memory: 4GB/8GB/16GB/32GB emmc optional, 8GB standard Power IC: RK808, supporting dynamic frequency modulation; Graphics and video processor Mali-T860 MP4, quad core GPU supports OpenGL ES 1.1/2.0/3.0/3.1, Openvg1.1, OpenCL, and Directx11 supports 4K VP9 and 4K 10bits H265/H 264 video decoding, up to 60 fps 1080P multi format video decoding 1080P video decoding, supporting H.264 and VP8 formats |
Interface | Display interface: support MIPI interface and eDP output Ethernet: RTL8211E Gigabit Ethernet PHY Touch interface: capacitive touch, can use USB or serial port to expand resistance touch Audio interface: AC97/IIS/PCM interface, supporting audio recording and playback SD card interface: two SDIO output channels; Emmc interface: onboard emmc interface, pins are not led out separately Ethernet interface: support gigabit Ethernet USB HOST interface: 2-way HOST2.0, 1-way HOST3.0 USB TYPEC interface: 1 channel UART interface: 5-channel serial port, supporting flow control serial port PWM interface: 2-channel PWM output IIC interface: 6-channel IIC output SPI interface: 1 channel SPI output ADC interface: 5-channel ADC Camera interface: 2-way MIPI input HDMI interface: high-definition audio and video output, audio and video synchronous output MIPI interface: 1-way MIPI RX, 1-way MIPI TX, 1-way MIPI RX/TX EDP interface: support PCIE interface: support |
Electrical | Input voltage: 12V/2A Output voltage: 12V/5V/3.3V Storage temperature: - 30~80 ℃ Operating temperature: - 20~70 ℃ |
| Hardware Interface |

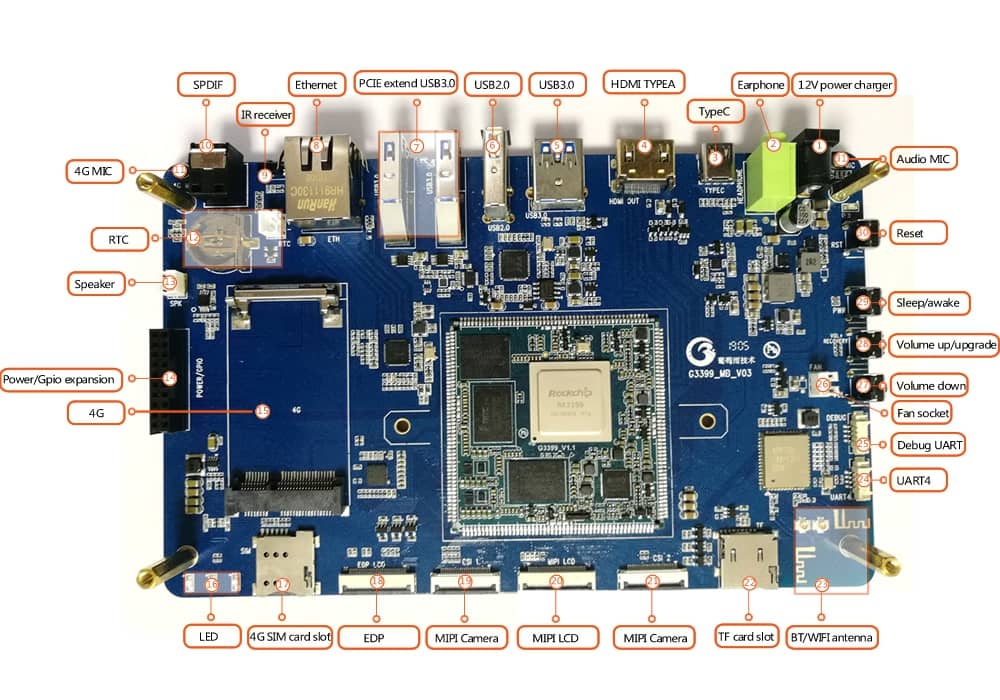

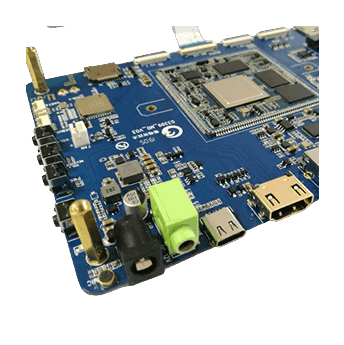

【1】 12V power supply: 12V power supply input 【2】 Headphone output: headphone output of audio 【3】 TypeC：TypeC 【4】 HDMI TYPEA: HDMI TypeA output 【5】 USB3.0 USB3.0 interface 【6】 USB2.0: USB2.0 host interface 【7】 PCIE expands USB2.0: PCIE expands USB3.0 interface 【8】 Gigabit network card: RJ45 interface 【9】 Infrared reception: infrared reception 【10】 SPDIF: SPDIF interface 【11】 4G MIC: 4G recording interface 【12】 RTC power supply interface: RTC power supply interface 【13】 Horn: horn 【14】 Power/gpio expansion: POWER, GPIO expansion port 【15】4G：4G 【16】 LED: controllable led 【17】 4G SIM card slot: 4G SIM card slot 【18】 Edp interface: EDP lcd interface 【19】Mipi camera ：Mipi camera 1 【20】 Mipi lcd: Mipi lcd interface 【21】Mipi camera：Mipi camera 2 【22】 Tf card slot: Tf card slot 【23】Wifi/bt antenna: Wifi, Bluetooth antenna 【24】Uart4：Uart4 【25】 Debugging serial port: debugging serial port 【26】 Fan power supply: 12V fan power supply interface 【27】 Volume down key: Volume down key 【28】 Volume up/up key: Volume up/up key 【29】Sleep/Wake key: Sleep/Wake key [30] Reset key: Reset key 【31】 Audio MIC: audio recording port |
Other | System support: Android 5.1, Linux+qt, Ubuntu14.04 and other systems Our service: RK3288 system on module+ carrier board customization+software development+OEM/ODM |
Application | It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle mounted control terminals, etc., reducing the R&D threshold and accelerating the product R&D cycle. |
|
