| CPU | MSM8953 ARM Cortex-A53 |
|---|---|
| Frequency | 2.0GHz*8 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |

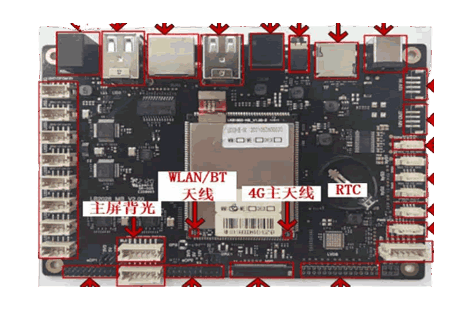

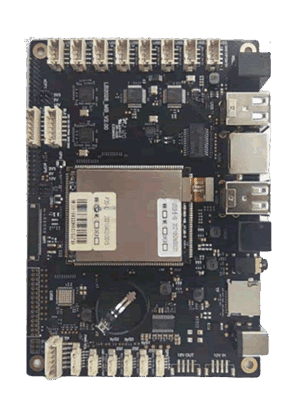

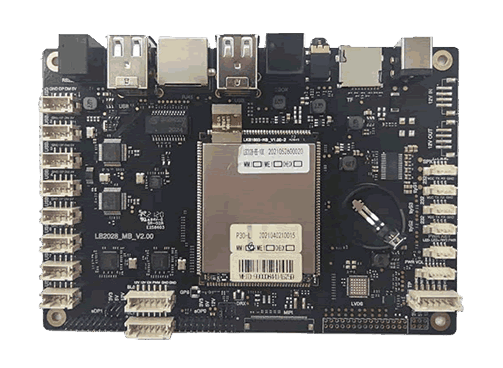

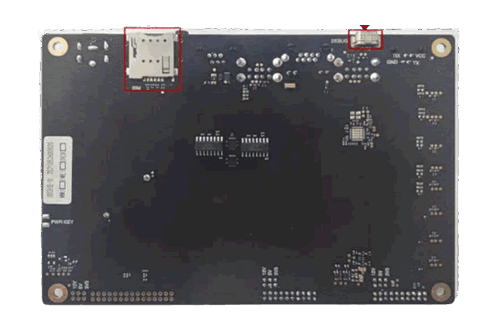

G2028-MSM8953(SDM450) Low power consumption
All Netcom industrial control board
Based on Qualcomm MSM8953 (DM450) platform
Central | 1、Standard edition: Qualcomm ' s®SDM450:ARM ® Cortex™-A53 application processor, up to 1.8GHz 64 bit 8-core 2、High frequency version: By replacing the core board, it can support up to MSM8953, 2.2GHz 64 bit 8-core |
|---|---|
Storage | Standard version: 2 GB LPDDR3, upto933MHz 16GB EMMC High configuration version: 3 GB LPDDR3+32 GB EMMC Up to 4 GB LPDDR3+64 GB EMMC |
| External Storage | TF card, up to 128GB |
| RF Operating Frequency Band | GSM900/1800/1900/850 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 CDMA 1X/EVDO: BCO FDD-LTE: B1/B3/B5/B8 TD-LTE: B38/B39/B40/B41N |
| WLAN | 80211b/g/n/ac2.4G/5G dual band |
| Bluetooth | BT 4x |
| GPS, BD, GNSS | GPS BEIDOU-BD2 Glonass |
| Display Interface | The maximum resolution supports FHD+(2160*1080) The dual display interface has the following three configurations EDP dual screen Main screen LVDS+sub screen eDP Main screen MIDI+sub screen eDP The above three configurations are changed by modifying the hardware |
| Graphic Parameters | SDM450: Adreno 506; up to a 600 MHZ 3D graphicsaccelerator EMSM8953: Adreno 506; up to 650 MHZ 3D graphicsaccelerator |
| USB Interface | 8-way USB20, vertical PH20 connector 4-way USB2.0, standard TYPE A interface One USB Micro B interface for DEBUG function |
| Serial Port | 4-way RS232 serial port (3-way vertical paste type 125mm interface, 1-way RU11 type interface) |
| Internet Port | 1-way Ethernet interface, R45 network socket |
| Power Interface | 12V DC power supply supports the following two interfaces at the same time: DC charging base (suitable for 51mm * 25mm adapter connector) Stand mounted PH20 interface *Internal parallel connection between DC charging base and vertical PH2 interface |
| UIM Card Interface | 1-way Micro Sim card interface (18V/285V) |
Scope of | Handheld terminal equipment, intelligent security equipment, mobile law enforcement terminal, mobile bill printing Industrial tablet computer, tachograph, mobile data acquisition terminal |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Qualcomm G2028 Development Board |
File does not exist! |
File does not exist! |
MSM8953 industrial control motherboard is a master industrial control motherboard based on Qualcomm MSM8953 (SDM450) platform. It is equipped with Android 10 operating system, full network communicat.
