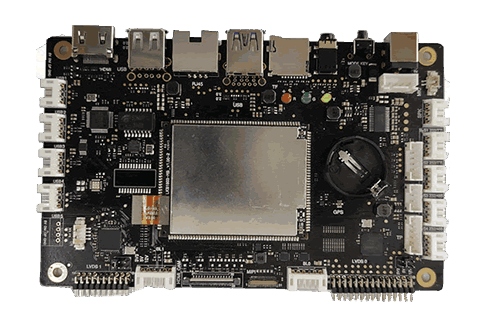

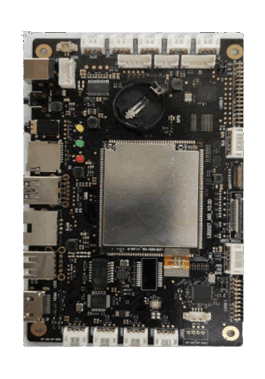

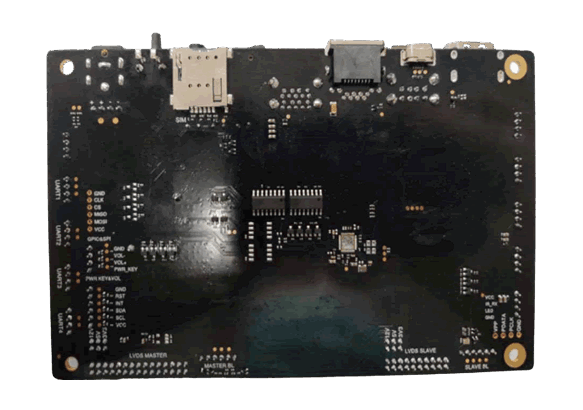

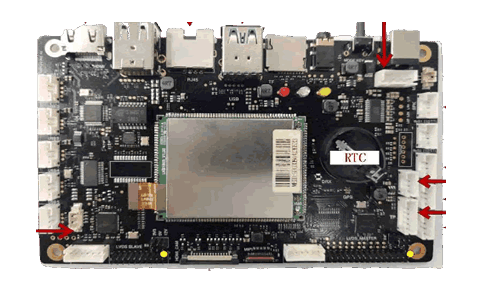

Qualcomm G2027 Development Board

Standard version: 2 GB LPDDR3, upto933MHz

16GB EMMC

High configuration version: 3 GB LPDDR3+32 GB EMMC Up to 4 GB LPDDR3+64 GB EMMC

TF card, up to 128GB

GSM900/1800

WCDMA: B1/B8

TD-SCDMA: B34/B39

CDMA 1X/EVDO: BCO

FDD-LTE: B1/B3/B5/B8

TD-LTE: B38/B39/B40/B41N

80211b/g/n/ac2.4G/5G dual band

BT 4x

GPS

BEIDOU-BD2

Glonass

The maximum resolution supports FHD+(2160*1080)

The main screen supports LVDS or MPI, and the secondary screen supports LVDS and HDMI *Dual screen display can freely select the main screen and secondary screen according to the demand

The above configuration can be realized by modifying the software

Sub screen LVDS and sub screen HDM can be displayed simultaneously

Sub screen LVDS does not support 1080P

SDM450: Adreno 506; up to a 600 MHZ 3D graphicsaccelerator

Or EMSM8953: Adreno 506; up to 650 MHZ 3D graphicsaccelerator

5-way USB2.0, PH2.0 interface

3-way USB2.0, 1-way USB3.0, standard TYPE A interface

1-way USB Micro b for DEBUG function

*The above-mentioned USB2.0 (PH2.0 interface) and four RS232 serial ports share the power supply capacity of 3A, and the four TYPE A interfaces share the power supply capacity of 3A

4-channel RS232 serial port, PH2.0 interface

The 4-channel serial port and USB2.0 (PH2.0 interface) share 3A power supply capacity.

One RJ45 Ethernet interface

12V DC power supply supports the following two interfaces at the same time:

DC charging base (applicable to 55mm * 21mm adapter connector)

XH254 interface

*The DC charging base and XH254 interface are internally connected

1-way Micro sin card interface (18V/285V)

Handheld terminal equipment, intelligent security equipment, mobile law enforcement terminal, mobile bill printing

Industrial tablet computer, tachograph, mobile data acquisition terminal
