| CPU | RK PX30 ARM Cortex-A35 |
|---|---|
| Frequency | 1.3GHz*4 |
| RAM | 1GB 0DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB eMMC |

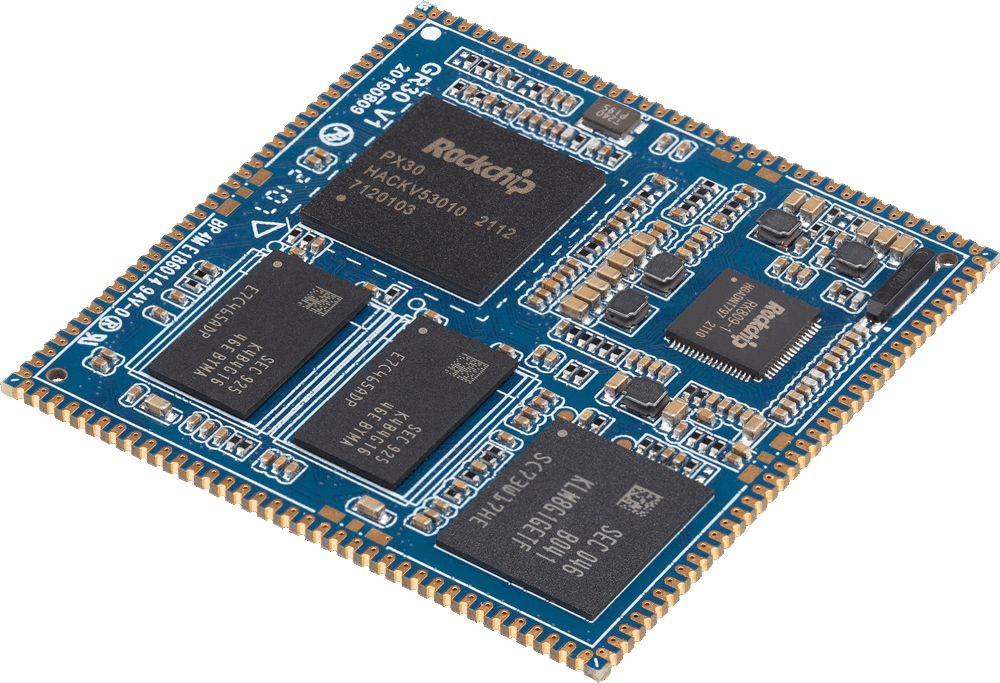

The Rockchip PX30‑based SoM integrates a quad‑core Arm Cortex‑A35 CPU (1.3 GHz), Mali‑G31 GPU, and supports 1 GB (standard) or 2 GB DDR3 memory. Multiple storage options including 4/8/16/32 GB eMMC. Equipped with rich multimedia and interface capabilities such as RGB, LVDS, MIPI‑DSI.
CPU: Quad‑Core Cortex‑A35 @ 1.3 GHz
GPU: Mali‑G31 MP2 supports OpenGL ES 3.2, Vulkan
RAM: 1 GB DDR3 (optional 2 GB)
Storage: eMMC 4/8/16/32 GB
Display: RGB, LVDS, MIPI‑DSI

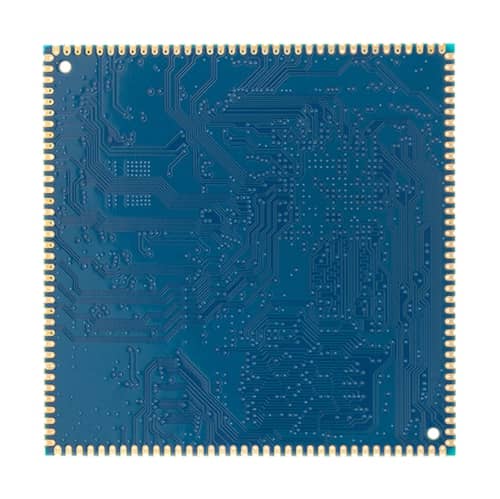

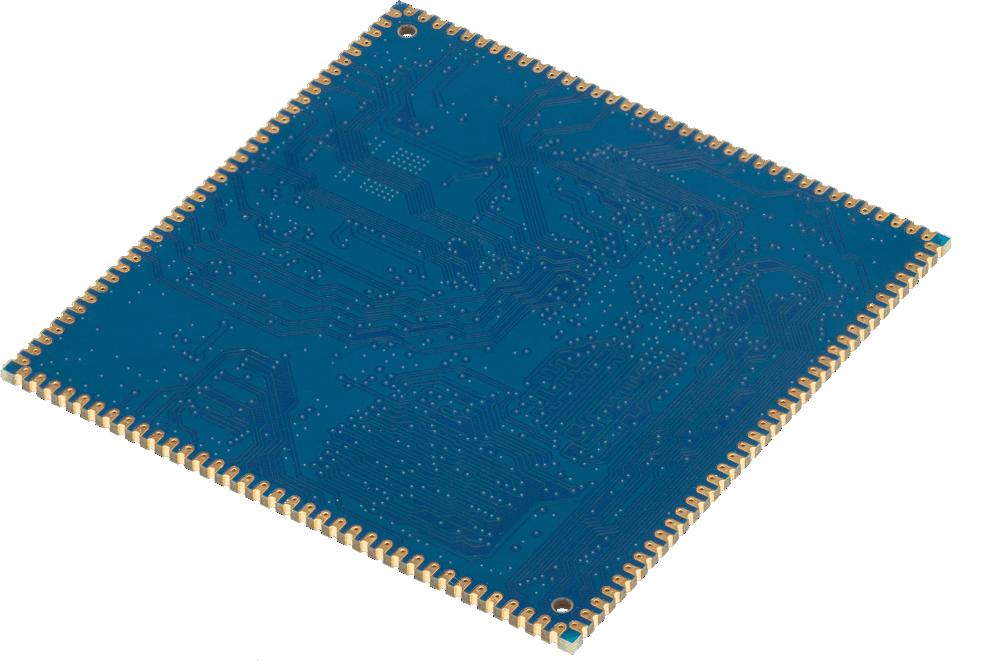

PCB: 45×45 mm, 144‑pin stamp‑hole, 8‑layer immersion‑gold
Power Management: RK809 power IC
Operating Systems: Android 8.1, Linux, Ubuntu
AIoT and Edge Computing Devices
Industrial HMI and Control Panels
Multimedia Terminals and Digital Signage
Automotive Infotainment Systems
Structural | 1. Appearance: Stamp hole 2. Size: 45mm*45mm*3mm 3. Pin pitch: 1.2mm 4. Number of pins: 144 PINs, to meet various expansion needs of users 5. Process: 8-layer immersion gold process design, PCB production by Taiwan-funded manufacturers |
|---|---|
System | CPU：RK PX30, cortex A35 quad core 1.3 GHz Memory: DDR3 design, standard 1GB, customizable 2GB [standard 1GB, customizable 2GB] Storage: 4GB/8GB/16GB/32GB emmc optional, standard 8GB [standard 8GB, customizable 32GB/16GB] Power IC: RK809; [Exclusive Support] Graphics Processor: Mali-G31, support OpenGL ES3.2, Vulkan 1.0, OpenCL2.0, to come out 1080p 60fps H.264 and H.265 video hard decoding |
| Interface Parameters | Display: RGB, LVDS, MIPI interface output Touch: Capacitive touch, and USB or serial port expansion resistive touch Audio: AC97/IIS interface, supports record and play SD: Single SDIO output channel EMMC: eMMC onboard, no other pin out Ethernet: 100M Ethernet USB HOST: Double channels HOST2.0 USB OTG: Single OTG 2.0 UART: Six channels, support serial port with flow control PWM: Eight channels IIC: Four channels IIC output SPI: Double channels output ADC: Three channels output Camera: Single MIPI CSI input |
Electrical | Input voltage: 4.2V--5V Output voltage: 1.8V/3V/3.3V/5V Storage temperature: -30~80 degrees Working temperature: -20~70 degrees |
Other | System support: support android11, linux, ubuntu, debian operating system Services we provide: PX30 system on module + carrier board customization + software development + OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Rockchip RK PX30 System on Module |
|
|
Embedded Rockchip PX30 SoM featuring quad‑core Cortex‑A35 CPU, Mali‑G31 GPU, up to 2 GB DDR3, eMMC storage options, rich I/O interfaces for AIoT and HMI applications.
