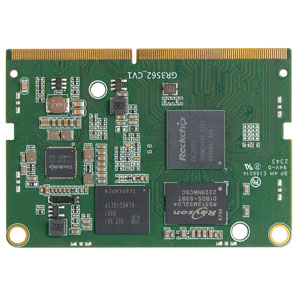

Embsom is proud to announce the launch of its latest System-on-Module (SoM), the RK3562, designed to empower edge AI, IoT, and embedded applications. This compact module combines high performance with low power consumption, making it an ideal solution for a wide range of industrial and commercial uses.
Processor: Rockchip RK3562, Quad-core 64-bit ARM Cortex-A53 up to 2.0GHz
GPU: ARM Mali-G52, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU: Integrated 1 TOPS RKNN AI acceleration engine
Memory: Up to 8GB LPDDR4
Storage: eMMC options from 8GB to 128GB
Video: 4K 30fps H.265/VP9 decoding, 1080P 60fps H.264 encoding/decoding
Interfaces: PCIe 2.1, USB 3.0 OTG, USB 2.0, MIPI CSI/DSI, LVDS, RGB, I2C, UART, GPIO, ADC, PWM
Connectivity: Dual Ethernet (1000Mbps and 100Mbps), optional Wi-Fi/Bluetooth module, 4G LTE/3G support
Operating Systems: Android 13, Ubuntu, Debian, Buildroot+QT
Dimensions: 69.6mm x 48.1mm, 8-layer PCB
The RK3562 SoM is tailored for applications such as:
HD display advertising machines
Vending machines
Teaching terminals
Automatic identification systems
Robotics
Security monitoring
Financial POS systems
Vehicle control terminals
The RK3562 System-on-Module is now available for order. For more information, specifications, and purchasing options, please visit the official product page:
