Edge AI camera reference design built on RK3576 SOM. Supports single/dual MIPI CSI, RKNN accelerated inference, and full SDK for fast OEM/ODM integration.
This AI Camera solution is designed for edge AI vision use cases such as face recognition, license plate recognition, people counting, and industrial inspection. Based on the RK3576 System-on-Module (SOM), the design offers efficient NPU inference, multi-MIPI ISP support, and flexible I/O for fast integration and production.
6T NPU for efficient on-device AI inference (RKNN supported).
Single / Dual MIPI CSI camera inputs and optimized ISP for low-light & WDR scenarios.
Industrial-grade reliability: -20°C ~ +70°C operating range and EMC-ready design.
Flexible I/O: MIPI CSI, USB3.0, Gigabit Ethernet, UART, I2C, SPI, GPIO headers.
Complete Linux / Android SDK.
OEM / ODM ready: board design, mechanical drawings and certification assistance.
Suitable for smart cameras, industrial inspection, people counting, license plate recognition, and other edge AI solutions.
Face recognition, perimeter protection, behavior analysis and alarm triggering.
Defect detection, assembly verification and inline inspection with local AI inference.
Customer counting, heatmaps and product analytics for store insights.
Face access control, home security camera and visitor detection.
Typical block diagram: Camera Sensor (MIPI CSI) → RK3576 SOM (CPU + NPU + ISP) → Network (Ethernet/WiFi/Cellular) → Cloud / Local Server.

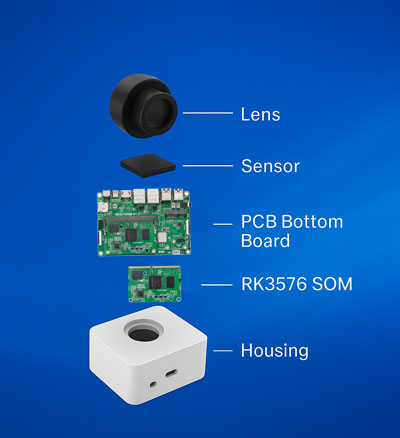

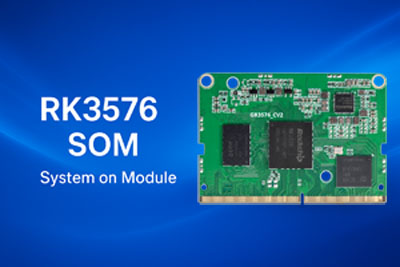

RK3576 SOM (2–16GB RAM, 8-256GB eMMC options)
Camera Carrier Board (dual MIPI support)
MIPI camera modules (RGB / IR / Wide-angle)
IR LED module / IR-CUT (optional)
Housing (IP-rated options available)
| Name | Contents |
Camera Carrier Schematic | Dual MIPI / Ethernet / USB / Power & expansion interfaces |
Mechanical / Housing Reference | DXF or ASCII mechanical files to assist enclosure design |
SDK & Tools | System-level customization, hardware drivers, SDK adaptation, and RKNN toolchain support, not application or algorithm development. |

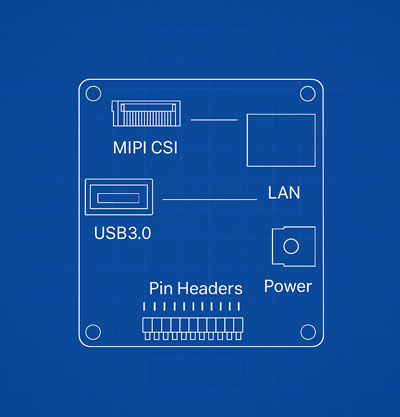

Highlighted interfaces: MIPI CSI, USB3.0, LAN, Power jack and Pin header expansion.
Contact us for the RK3576 SOM reference package — schematic, SDK and OEM options. Fast customization and sample support available.
